Product Information
SKU:
SCM-A01
The adapter has reverse polarity protection
Power supply indicator (green),
Power supply for ECU indicator (red),
Boot mode indicator (blue).
Automatic power supply switching for ECU by (L-line)
Automatic generation Boot (2 pc.) and CNF(for 53 module).

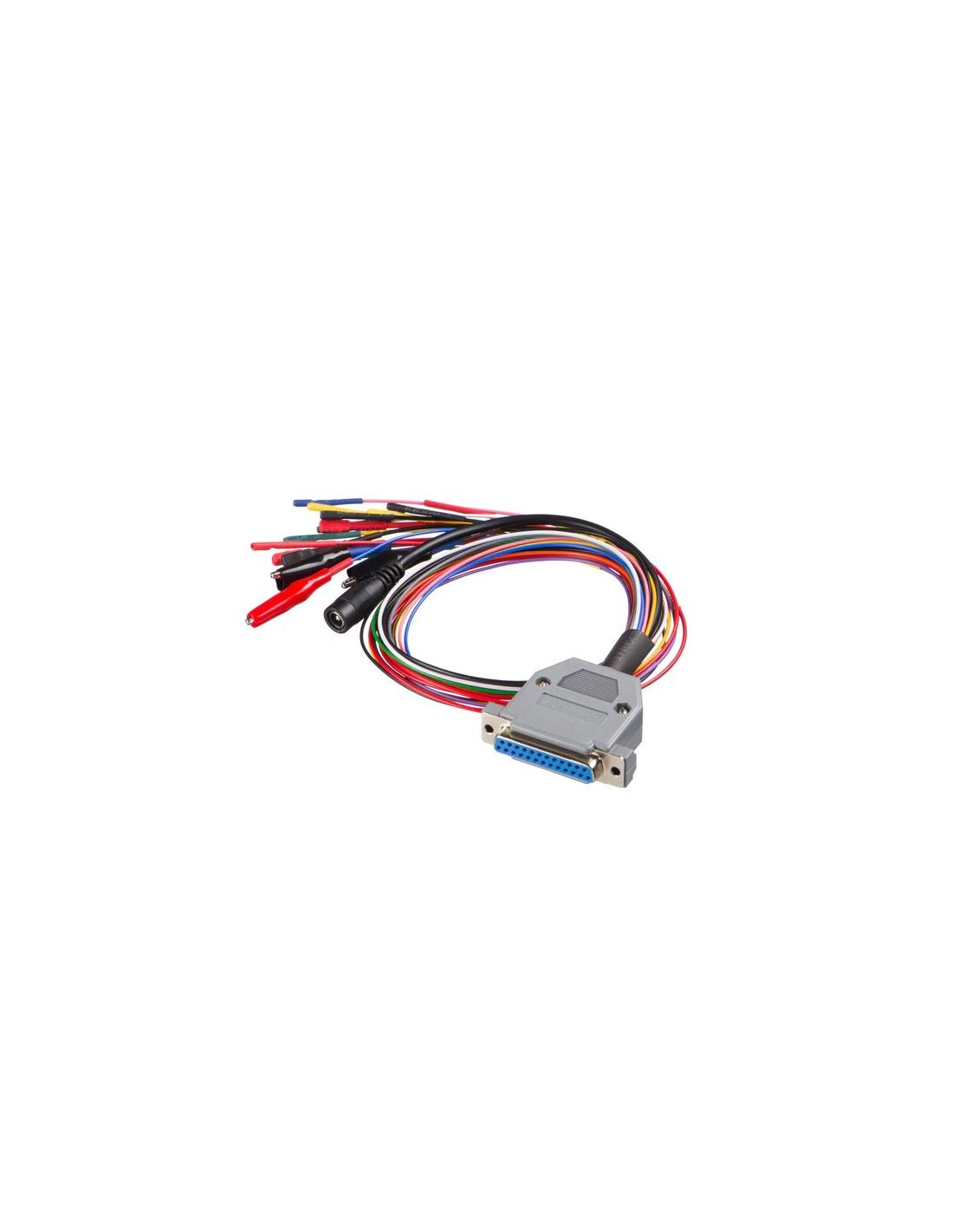

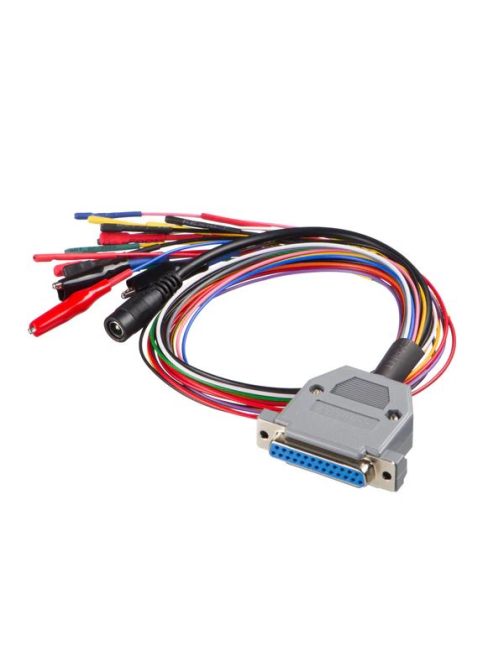

Boot cable PINOUT:
- red +12V (1 big connector(2.5mm) and 2 small connectors)
- black GND (1 big connector (2.5mm) and 1 small connector)
- white CAN H (1 small connector)
- green CAN L (1 small connector)
- yellow + black line (with green shield) K-Line(1 small connector)
- yellow GPT1(1 small connector)
- orange GPT2(1 small connector)
- violet VPP
- blue CNF1(for 53)( crocodile terminal, 1KOhm)
- grey boot1(for 53)( crocodile terminal, 1kOhm)
- brown boot2(for 53 )( crocodile terminal, 1kOhm)
