Product Information
SKU:
FLX4.92

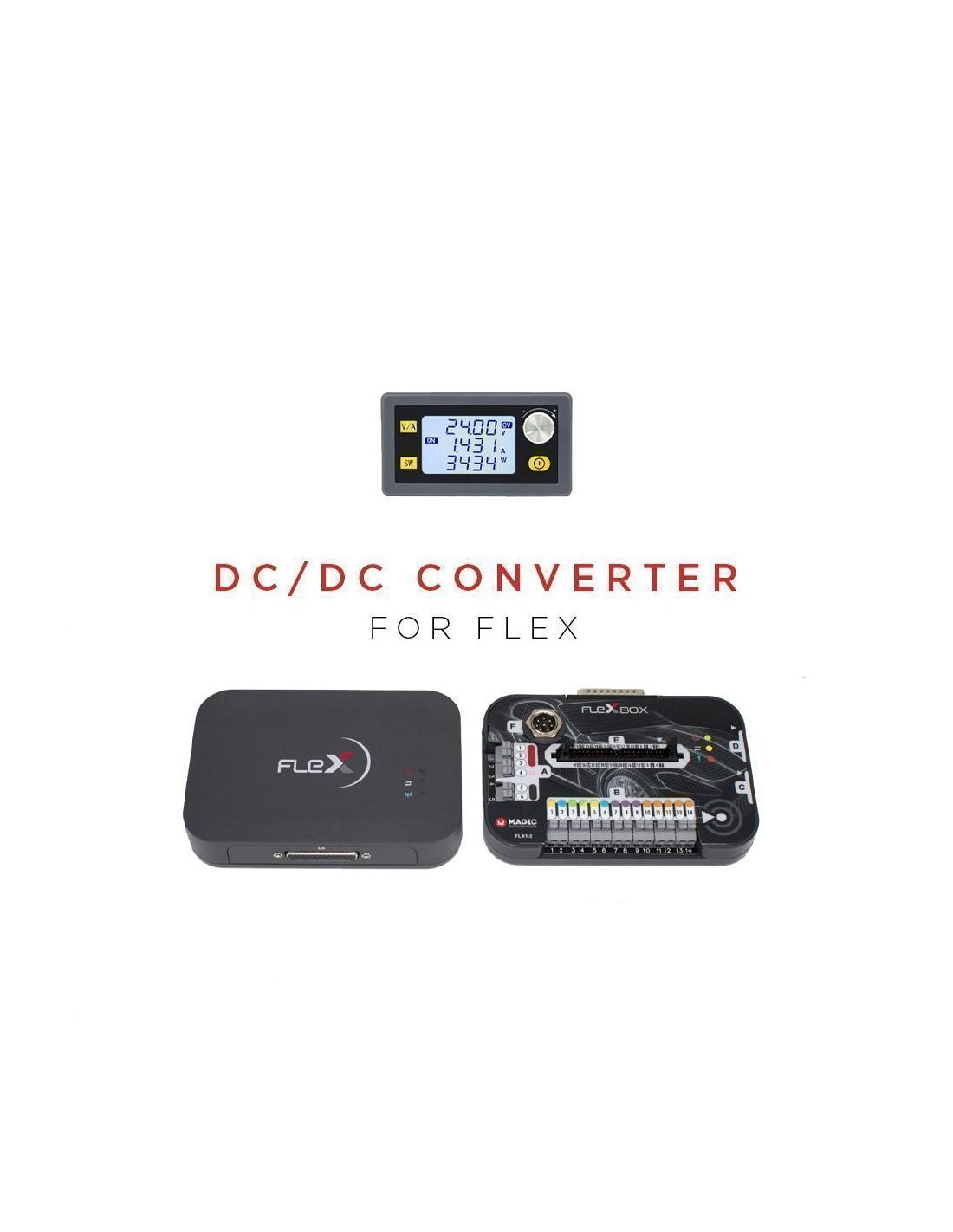

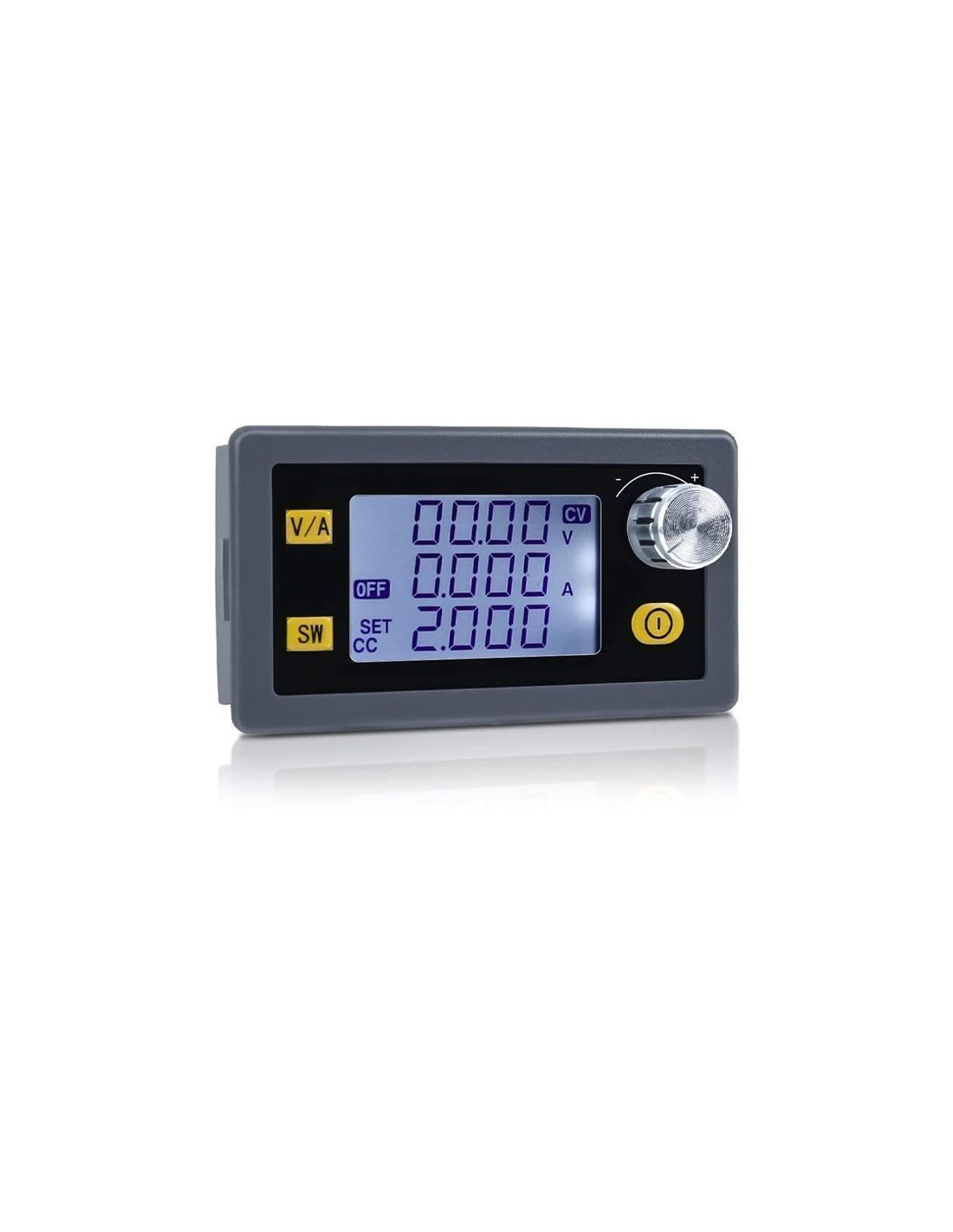

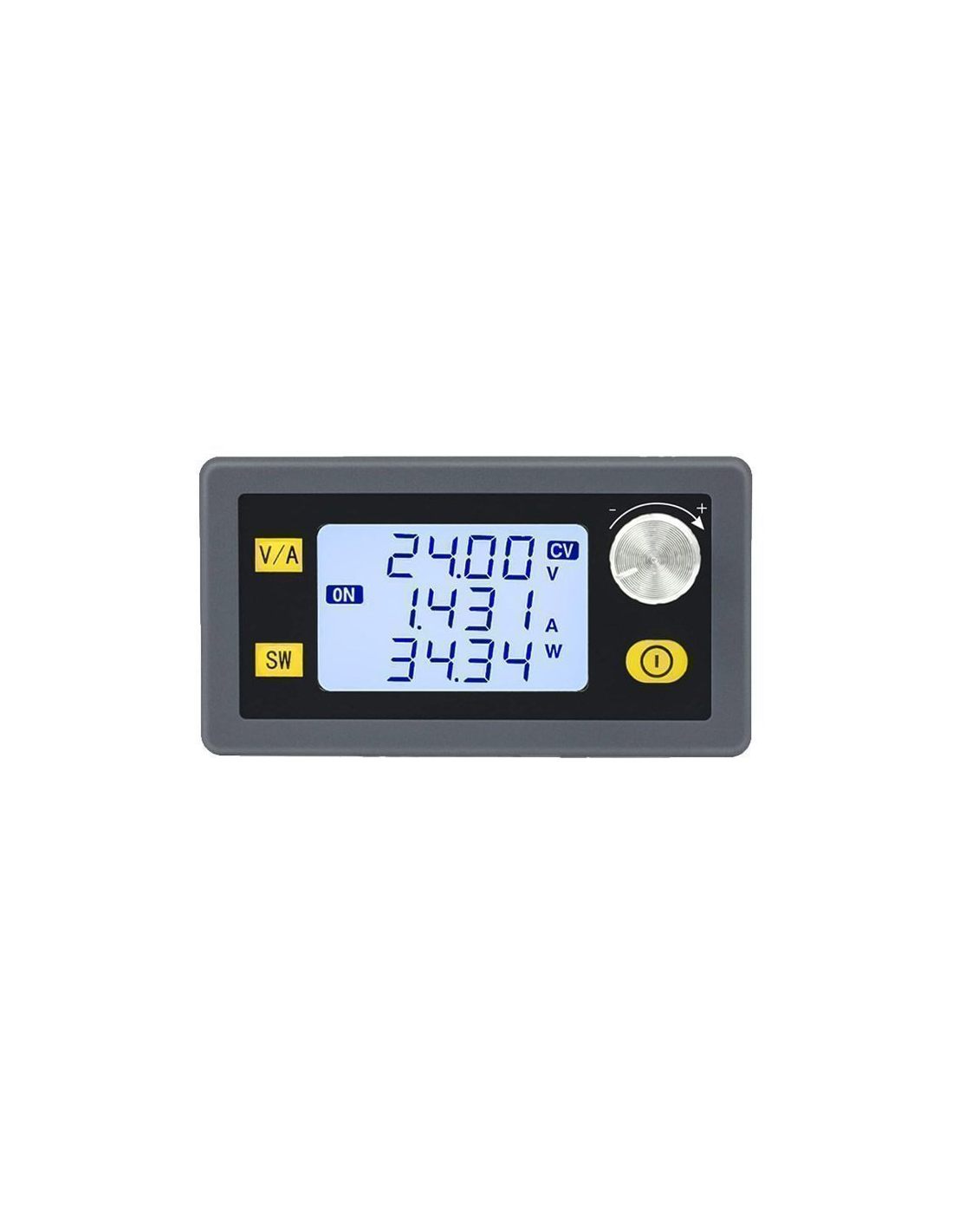

The DC/DC Converter is a device suitable for control unit programming with Flex. Voltage values can be adjusted during chiptuning operations.
Main features:
- Easily adjustable voltage
- Compatible with Flex programmer
- Compatible with electronic units in Bench mode
- Display LCD
The DC/DC Converter allows you to adjust constant voltage values during control unit reading and writing with Flex.
Module connection occurs between the programmer and the electronic unit.
In specific operations, the Flex software will require the use of the DC/DC converter during unit programming.
Compatible models:
- Marelli 6F3 - Bench
- Marelli 6JF - Bench
- Marelli 6JO - Bench
- Marelli 6O2 - Bench
- Marelli 6O3 - Bench
- Bosch MSE6.0 - Bench
- Bosch US6.0 - Bench
Specifications
- Item Type: Adjustable Power Module
- Material: ABS
- Input Voltage: 6.0-36V
- Output Voltage: 0.6-36V
- Output Current: 0-5.0A
- Voltage accuracy: ±0.5% +1 word
- Output Power: 80W
- Current accuracy: ±0.5%+3 words
- Voltage Resolution: 0.01V
- Current Resolution: 0.001A
- Conversion efficiency: about 88%
- Soft start: yes
- Weight: approx. 110g / 3.9oz
