Product Information
SKU:
SPEEDSTOPBE2

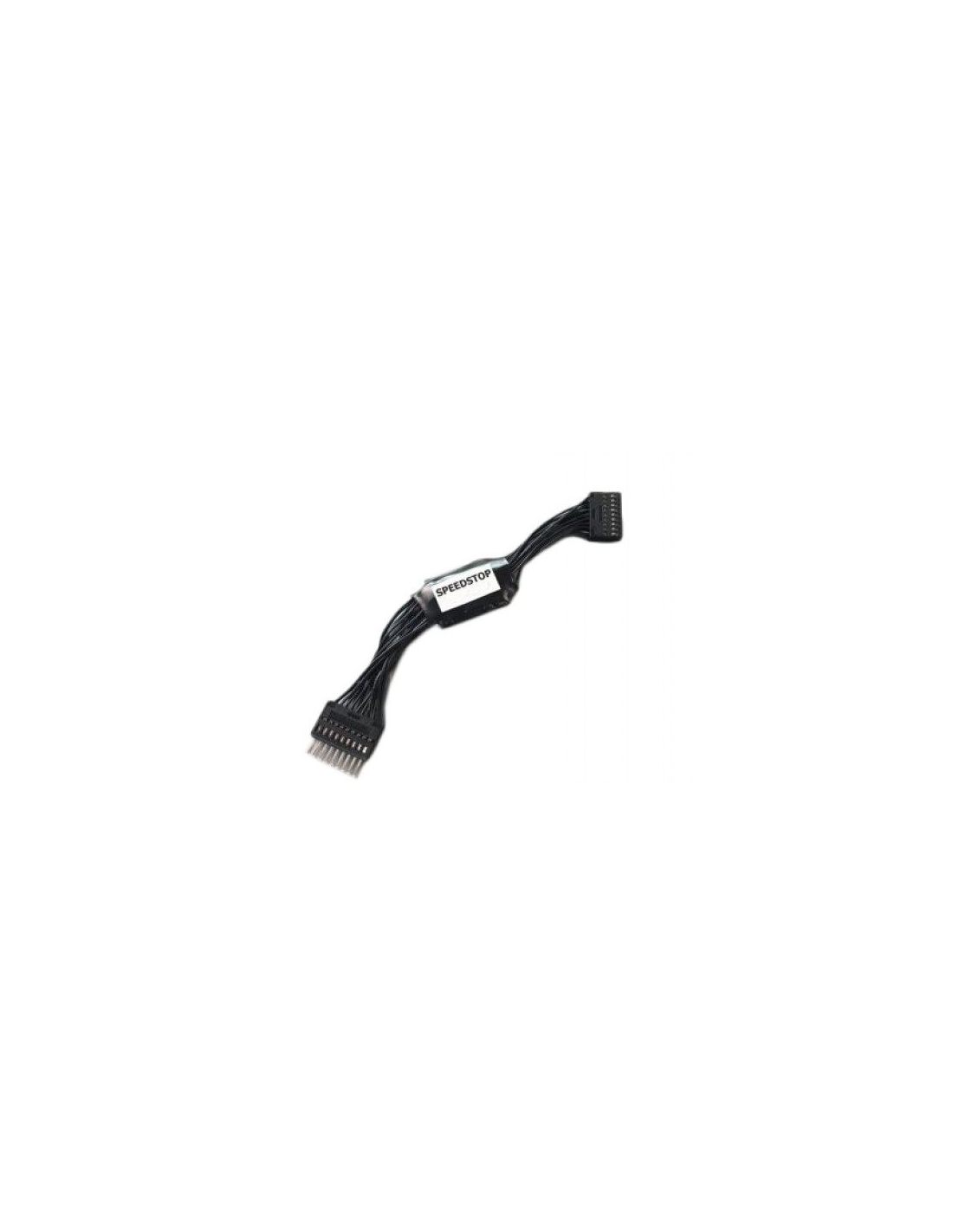

For Bentley Flying Spur, Continental GT cars testing. While car "drive test" is possible to stop (freeze) odometer counting.
- Bentley Continental GT, GT3, W12, V8 from year 2007-2018 (RB8 instrument cluster type);
- Bentley Flying Spur. Coupe from year 2007-2018 (RB8 instrument cluster type);
How to install:
Plug and Play device with easiest connection way possible, no soldering is required in the installation process. Remove instrument cluster. Disconnect cluster green and blue connectors . SPEEDSTOP two connectors are marked with blue and green color tape. SPEEDSTOP male connectors connect to car cluster connector - check twice connectors orientation - on both connectors one side have trail - look picture. Use additional cable ties for fixing connectors.
Speedometer, cruise control works correctly all time.
Using SPEEDSTOP on Bentley: (tachometer move up on speedometer every time when working mode are changed):
- Push 4x High beam light switch (tachometer pointer on cluster move 1 time) = Odometer freezed, Speedometer show actual speed;
- Push 4x High beam light switch (tachometer pointer on cluster move 2 time) = back to normal mode, Odometer and Speedometer works normal.
After Ignition OFF/ON SPEEDSTOP keeps selected working mode.
If you remove SPEEDSTOP adapter after test drive, odometer not changing.
