SPEEDSTOPFIAT - Plug and Play KM freezer for Iveco Daily, Camper Van, Ducato, Jumper, Boxer Facelift 2014-2020

Product Information

SKU:

SPEEDSTOPFIAT

 For Iveco Daily 2014+, Camper Van, Ducato, Jumper, Boxer Facelift 2014-2020 cars drive test or dyno test. While car drive test is possible to stop (freeze) odometer counting.

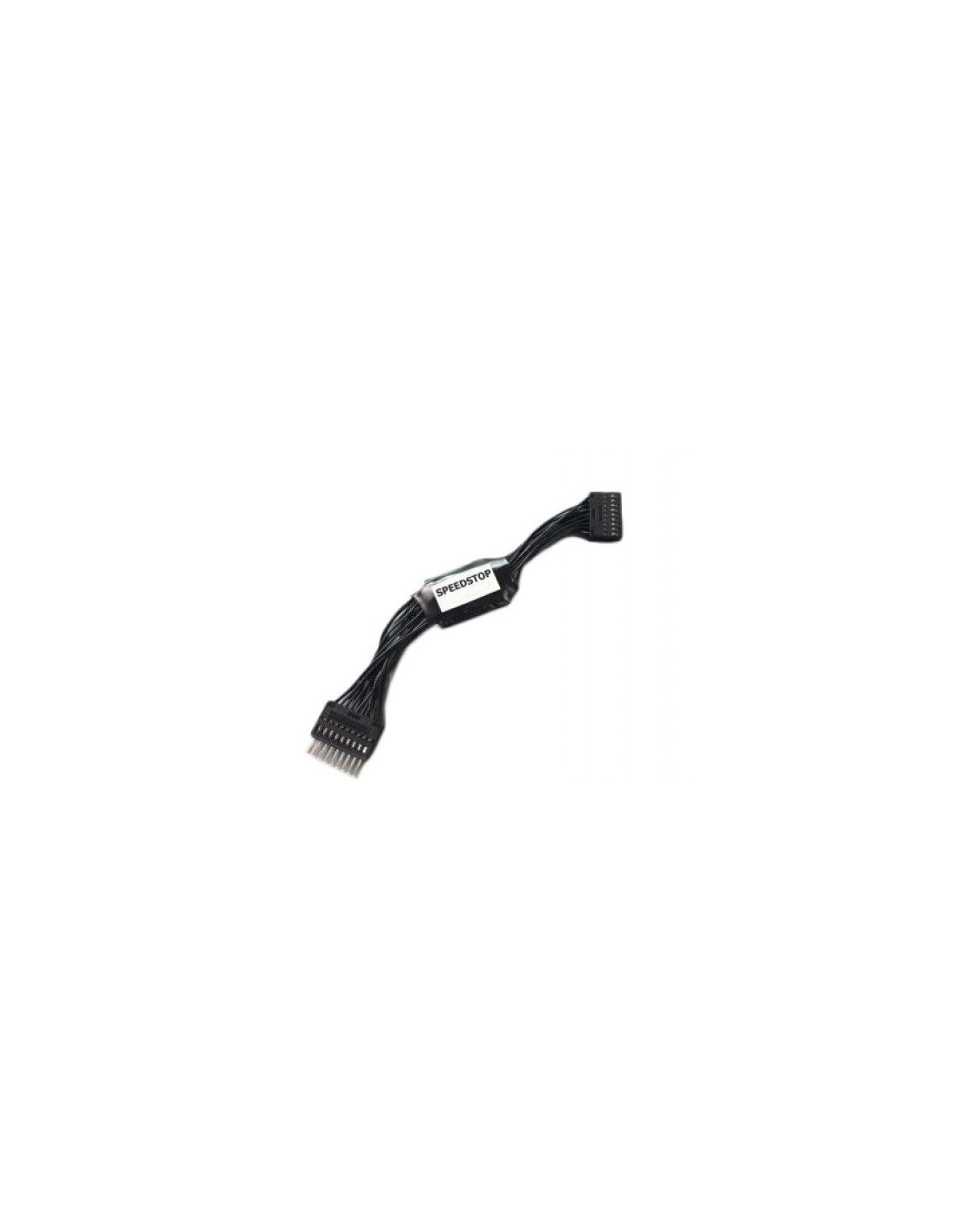

Plug and Play device with easiest connection way possible, no soldering is required in the installation process.

Works with :

Fiat Ducato 2014+;
Citroen Jumper 2014+;
Peugeot Boxer 2014+;

all Campers made on Ducato, Jumper, Boxer base;

instrument cluster must look like in picture - with black LCD display.

How to install:

Plug and Play device with easiest connection way possible, no soldering is required in the installation process. Remove instrument cluster - look video how to do this. Disconnect cluster black connector. Now connect SPEEDSTOP female connector to cluster - check position according ARROWS from photos. SPEEDSTOP male connector connect to car cluster connector - check twice connectors orientation. Use additional cable ties for fixing connectors.

Speedometer works correctly all time in Mode 2, just odometer not counting.

Using SPEEDSTOP on Ducato, Jumper, Boxer, Camper Vans: (hazard indicator on speedometer blinks every time when working mode are changed­):

• Pull 4x High beam light switch (hazard indicator on speedometer blinks 1 time)  = Odometer freezed, Speedometer works normal;
• Pull 4x High beam light switch (hazard indicator on speedometer blinks 2 times) = back to normal mode, Odometer and Speedometer works normal.

After Ignition OFF/ON SPEEDSTOP keeps selected working mode.

If you remove SPEEDSTOP adapter after test drive, odometer not changing.
