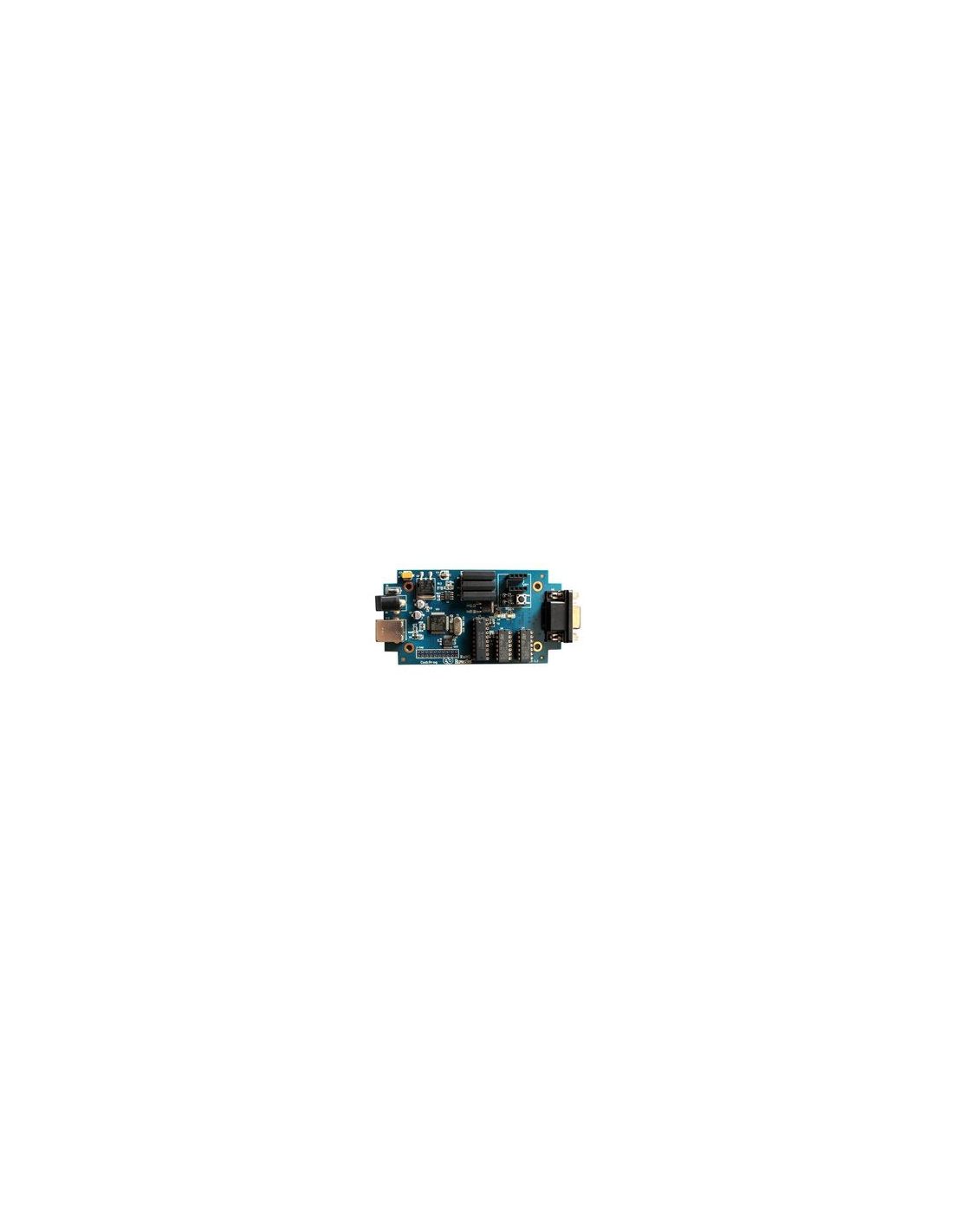

CodiprogUSB MK2 - universal EEPROM tool that allows to read, edit and write various types of EEPROM memory. I2C, SPI and Microwire memory interfaces are supported.
CodiProgUSBMK2 Basic features:
- fast erase all M35080 EEPROMs: M35080, M35080-3, M35080-6, M35080-VP, M35080-V6, D80D0WQ, 160D0WQ,
- manually adjusting parameters,
- communication with PC through USB port
Supported memory types:
I2C (24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C128, 8582C)
SPI (25C010, 25C020, 25C040, 25C080, 25C160, 25C320, 25C640, 25C128, 25C256)
SP08 (M35080, M35080v6, D80D0WQ, 160D0WQ)
Mircowire 16bit (M9306, M9346, 93C06, 93C46, 93C56, 93C66, 93C76, 93C86, 93CS56, 93CS66, 93CS76, 93CS86)
Microwire 8bit (93C46_8bit, 93C56_8bit, 93C66_8bit, 93C76_8bit, 93C86_8bit, Yazaki_8bit)
Freescale / Motorola MC68HC912D60 (4F73K) MC68HC912D60A (2K38K) MC68HC912DC128 (0K50E) MC68HC912DG128 (5H55W) MC68HC912DC128A (3K91D) MC68HC912DG128A (3K91D) MC9S12D64 (2L86D) MC9S12DG128B (0L85D) MC9S12DT128B (0L85D) MC9S12DT128B (1L85D) MC9S12DT128B (3L40K) MC9S12DB128B (0L85D) MC9S12A128B (0L85D) MC9S12H128 (1K78X) MC9S12DG256C (2K79X) MC9S12DT256C (2K79X) MC9S12DP256C (2K79X) MC9S12DP512 (4L00M) MC9S12H256 (1K78X) CAS4 (5M48H)

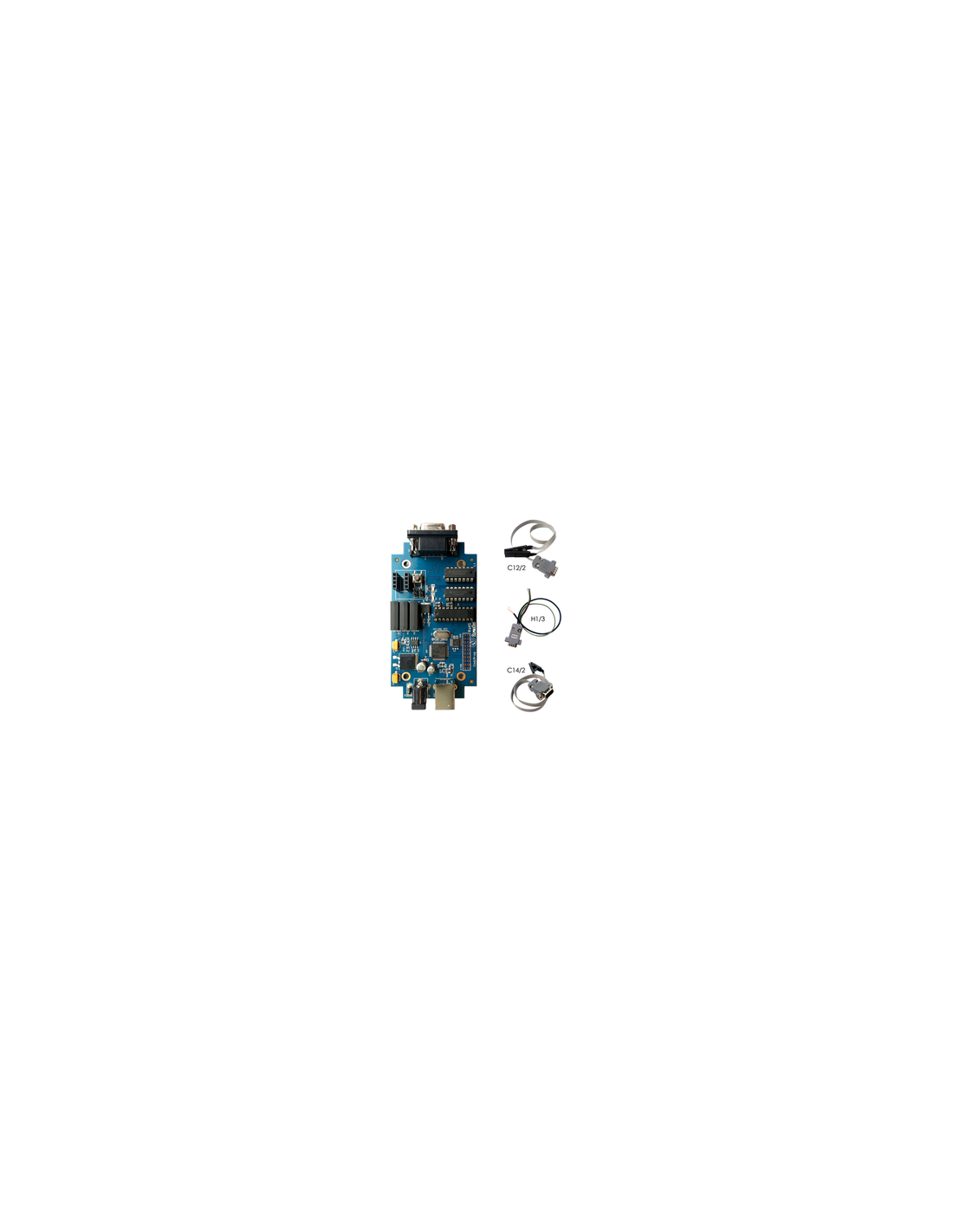

Set includes: CodiProgUSBMK2 + cable H1/3, cable C12/2, cable C14/2.
SOFTWARE AND USER MANUAL:
- CodiProgUSBMK2 (Windows 2000, XP, Vista, NT) installation version - CodiProgUSBMK2 - User Manual
- CodiProgUSBMK2 Technical Help
