ORG5MBEI - PROGRAMMER ORANGE5 - MBE FULL Version + IMMO HPX

Product Information

SKU:

ORG5MBE

Orange5 is a professional programming device for memory and microcontrollers.

Unique feature of the current series programmers is built-in macro-language for writing down protocols,

which gives fast and easy capability to add new types of micro-schemes,

precisely meeting manufacturers' requirements to read/write algorithms.

This set contains most of the popular adapters and is one of the most flexible EEPROM/ FLASH programmer, a powerful tool in your hands.

Technical Info:

• Connection and power via USB interface (USB2.0)
• Universal easy to plug panel ZIF16 for EEPROM
• Control of contacts in the sockets
• Two expansions connectors compatible with Orange4 and Omega MTRK
• Protection against overcurrent
• Overload voltage protection
• Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
• Three adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional fixed 10V for microcontrollers.
• High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
• Oscillator clock generator with frequency ( up to 24 Mhz) and out voltage (2.0...5.0V) adjustment.
• Capability of functional emulation of USB CDC devices.
• Built-in 32-bit virtual machine
• Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter);
• plastic case.

Software

• Maximum buffer size - 32Mb;
• Users can create own HPL modules
• Edit 8 and 16 bits HEX values, as well as ASCII.
• Read and write files in BIN, HEX, S19 formats;
• Visual compare mode with highlight values;
• Write all chip or marked area;
• Support for multiple configuration files;
• Auto-save backups;
• Extended set of operations on the buffer;
• Works under Windows XP (32 bit).

Set contains:

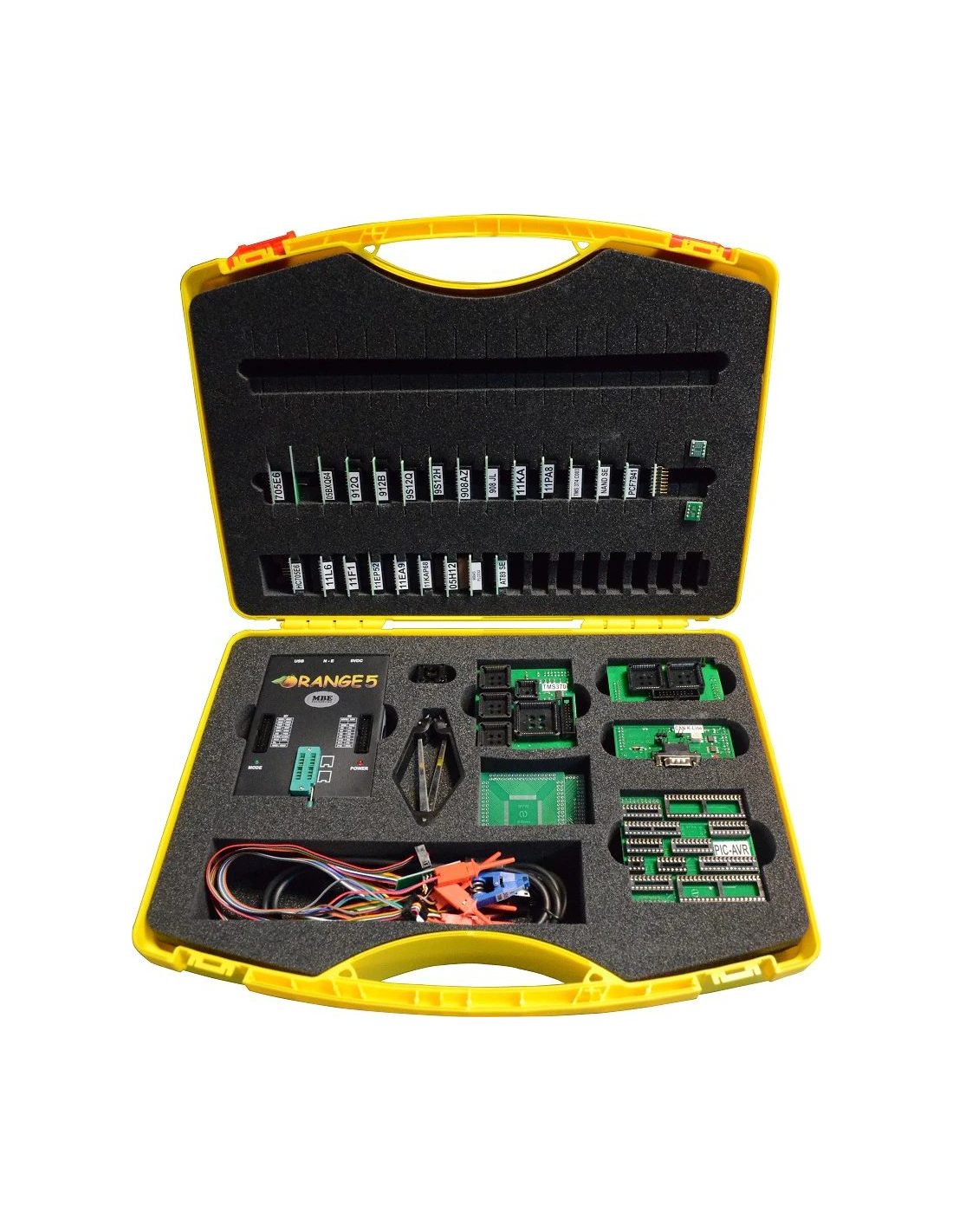

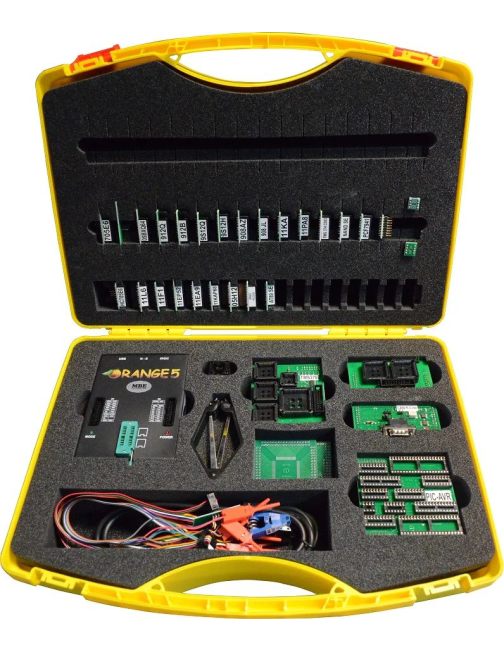

• Orange5 device
• Orange5 Software
• Orange5 USB base + Motorola license
• USB cable
• SOIC8 clip POMONA with leads
• PLCC extractor

Adapters in MBE FULL set

• 912Q
• ST62 SE
• 908AZ
• 9S12Q
• 908 JL
• 9S12H
• 11KA
• 11PA8
• TMS 374 C003
• NAND SE
• SOIC8-16
• SOP8 / TSSOP-8
• 11EP52
• 11KAP68
• 11L6
• 11F1
• 05H12
• 908AS
• AT89 SE
• QFP100 / 112/ 144
• QFP64 / 44
• QFP48-80
• TMS370
• 05B2
• PIC-AVR
• Test clip hook

PCF

PCF7941 Reset

Alfa Romeo

BSI

• 147

Audi

BCM2

• Ver.1 uPD70F3239
• Ver.1 uPD70F3380
• Ver.2 uPD70F3380
• Ver.1 uPD70F3634

Dash

• A2 VDO crypto 93C86
• A3 UKNSI 93C56
• A3 VDO '97/99 93C66
• A3 VDO crypto 93C86
• A3 MM 912DG128
• A4 UKNSI 0012-003 93C56
• A4 UKNSI 0014-001 93C56
• A4 UKNSI 0016-001 93C56
• A4 UKNSI '97/98 93C56
• A4 VDO '97/99 93C66
• A4 VDO '99/01 93C86
• A4 MM 912DG128
• A6 UKNSI 0012-001 93C56
• A6 UKNSI 0014-001 93C56
• A6 UKNSI 0016-001 93C56
• A6 VDO '97/99 93C66
• A6 VDO '99/01 93C86
• A6 VDO crypto 93C86
• A6 MM 912DG128
• S3/S6 MM 912DG128
• TT MM 912DG128

Immo

• '94/97 4A0 953 234 93C46
• Delphi 8D0 953 234 93C46

ECU

• '00/04 ECU EDC15 24C04
• A3 1.8T 0261204678 24C02
• A4 1.8T 0261204778 24C02
• A4 '02 8E0 909 xxx 95040

BMW

Dash

• Dash with M35080

Immo

• EWS-3 HC11EA9 clips [0D46J]
• EWS-3 HC11EA9 wires [0D46J]
• EWS-3 HC11EA9 adap [2D47J]
• EWS-3+ HC11EA9 clip [0D46J]
• EWS-3+ HC11EA9 adap [2D47J]

Chery

• All Chery with 0L72A
• All Chery with 0L59X

Chevrolet

Immo

• Captiva MC9S08DZ60 [3M05C]

Chrysler

Immo

• SKIM immobox 24C02
• Ram uPD70F3626

Citroen

BSI

• Berlingo 03/06 BSI v1 95160
• Berlingo 03/06 BSI v2 95160
• Berlingo 03/09 BSI v3 95160
• C2 '03/04 BSI 95160
• C3 '02/04 BSI v1 95160
• C3 '02/04 BSI v2 95160
• C5 '01/04 BSI 912DG128
• C5 '02/04 BSI 95160
• C8 '03/04 BSI 912DG128
• Picasso '03/04 BSI 95160
• Xsara II '01/03 BSI 95040
• Immo
• Berlingo Valeo 93C46
• Jumper '99/06 Delphi 93C56
• Jumpy 705E6 [F82B]
• Relay Delphi 93C56

ECU

• Xsara ECU EDC15C2 95P08

DAF

Immo

• MC68HC908AZ60 [2J74Y]
• MC68HC08AZ32A [2L52H]

Dodge

Immo

• SKIM immobox 24C02

Fiat

BSI

• Panda '02 BSI [1L40K]
• Stilo 912DG128 [3K91D]
• Stilo BSI [1K79X]
• Strada BSI [1K79X]

Immo

• IMM001.11 [1K59H]
• IMM009.01 [1K59H]
• IMM009.01 [0L72A]
• IMM100.01 [1K59H]
• IMM110.01 [1K59H]
• Bravo 705E6 [G72G]
• Bravo 705E6 Clips [G72G]
• Bravo 08AZ32 [1H56A]
• Cinquecento '96 93C46
• Coupe '96 immobox BOSCH 93C46
• Ducato Delphi 93C56
• Marea 08AZ32 [1H56A]
• Punto 93C46
• Punto Delphi 93C66
• Scudo 705E6 [F82B]
• Palio '09 [0L72A]
• Seicento Delphi 93C56

ECU

• Scudo '01 JTD EDC15C2 95P08

Ford

BSI

• Focus '03- 9S12XEP768 [5M48H]

Dash

• 4M5T MC9S12H128[1K78X]
• 8VT4 MC9S12XHZ256[1M80F]

ECU

• Focus '00 ECU 77012

Gilera

ECU

• Fouco 500 [ST10F269]

Great Wall

Immo

• With 0L72A

Hyundai

ECU

• Accent KEFICO ECU M95160
• Elantra KEFICO ECU M95160

Honda

Immo

• Acord '06 Immo HIS-5 93C46
• Legend '07 Immo HIS-5 93C46
• Valeo HC05B6 [0F10V]
• Valeo HC05B8 [3D33J]
• Valeo HC705B16 [0D28J]

Jeep

Immo

• Grand Cherokee 08AZ32 0J66D
• Grand Cherokee '13 uPD70F3626
• Grand Cherokee '09 uPD70F3629
• SKIM immobox 24C02

KIA

Immo

• '99/01 Immobox 93C46

ECU

• Cerato KEFICO ECU M95160

Lancia

Immo

• Kappa immobox BOSCH 93C46

Mazda

Immo

• Lucas 19AS HC05B8 [3D33J]
• SKLC
• 2 '09- MC9S12XDT384
• Demio '09- MC9S12XDT384

ECU

• 6 ECU 93A66

Mercedes Benz

Immo

• Sprinter 05X16 [0D62J]
• Sprinter/Vito 08AZ32 [0J66D]
• Sprinter/Vito 08AZ32A [L52H]
• EZS
• W203 908AZ60 [1J35D]
• W203 908AZ60 [1J35D]
• W203 908AZ60 [4J74Y]
• W220 908AZ60 [1J35D&4J74Y]
• W639 Vito '03/up [1L02M]
• W639 Vito '03/up [3K85K]
• W639 Vito '03/up [4J74Y]

Nissan

Immo

• Immobox with TMS370Cx2x

BSI

• Skyline [1L15Y] Wires
• Automotive K/CAN
• NATS-2 (Motorola) (More Information)
• NATS-4 (TMS) (More Information)
• NATS-5 (TMS) (More Information)
• NATS-5 (ST) (More Information)
• NATS-5 (TMS in 5WK48645) (More Information)

Opel

Immo

• Immo HC05B6 [0F10V]
• Immo TMS370C002 (PLCC28)
• Immo 5WK4 7631[0L72A]

Peugeot

BSI

• 307 '01/03 BSI 912DG128
• 307 '01/03 BSI 912DG128A
• 307 '02/05 BSI 95160
• 807 '04/05 BSI 912DG128
• 807 '05/06 BSI 95128

Immo

• Boxer Delphi 93C56
• 106 Valeo 93C46,
• Partner Valeo 93C46

Renault

Immo

• Clio-I immobox Sagem 93C46
• Clio-II '98 BMT Sagem 93C46
• Kangoo immobox Sagem 93C46
• Master '99-01 immobox Sagem 93C46

UCH

• Megane UCH [4L91N]

IR key

• Clio key with MC68HC05K3

Rover

Immo

• Valeo HC05B6 [0F10V]
• Valeo HC05B8 [3D33J]
• Valeo HC705B16 [0D28J]
• EWS 9S12DG128 [3L40K]

Seat

Dash

• Cordoba VDO '99/01 93C86
• Cordoba VDO '03/05 93C86
• Cordoba MM 9S12H256
• Ibiza VDO '00 93C66
• Ibiza VDO '99/01 93C86
• Ibiza VDO '03/04 93C86
• Ibiza VDO crypto 93C86
• Ibiza MM 9S12H256
• Ibiza 24C64
• Leon VDO v.1 93C86
• Leon VDO v.2 93C86
• Leon VDO v.3 93C86
• Leon VDO v.4 93C86
• Toledo VDO v.1 93C86
• Toledo VDO v.2 93C86
• Toledo VDO v.3 93C86

ECU

• EDC15 '00/04 24C04
• EDC16U1 '04/06 95320
• EDC16U31 '03/05 95320

Skoda

Dash

• Fabia VDO '00/01 v1 93C86
• Fabia VDO '00/01 v2 93C86
• Fabia VDO '04 93C86
• Fabia VDO crypto 93C86
• Felicia VDO 93C66,
• Felicia VDO '01/02 93C86
• Oktavia VDO 93C66
• Oktavia VDO '00/05 93C86
• Oktavia VDO crypto 93C86
• Roomster VDO crypto 93C86
• SuperB VDO '02/04 93C86
• SuperB VDO crypto 93C86

ECU

• '00/04 ECU EDC15 24C04
• '05/06 ECU EDC16U1 95320

SsangYong

Immo

• 87110-0930 MSP430F1232
• 87110-0910 MSP430F1232
• MSP430F1232 (universal)
• VDO MC68HC05B16 [0D60J]

Suzuki

Immo

• Baleno '99- 93C66
• Swift '99- 93C66
• Alto 24C01
• Ignis 24C01
• Jimny 24C01
• SX4 [0L72A]

Toyota

Immo

• Immobox 89780-12070 93C66
• Immobox 89780-20010 24C04
• Immobox 89780-42030 93C66

ECU

• ECU 89661-50440 93C56

VW

BCM2

• uPD70F3634
• VW Beetle dash
• Beetle 912D60
• Beetle '03/05 912DG128
• Beetle 03/05 912DG128C L05H
• Beetle 05/06 9S12H256 K78X
• VW Beetle ECU
• Beetle EDC16U31 95320
• VW Bora dash
• Bora MOT'99/00 24C02
• Bora VDO 93C66
• Bora VDO '99/00 93C86
• Bora VDO '01 93C86
• Bora VDO '01/03 93C86
• Bora VDO '03/05 93C86
• VW Caravelle ECU
• T5 '04/06 EDC16U1 95320
• T5 '04/06 EDC16U31 95320
• VW Fox dash
• Fox MM 9S12H256
• VW Golf dash
• G4 MOT 24C02
• G4 MOT '01/03 24C08
• G4 BOSCH '02/03 24C08
• G4 VDO 93C66
• G4 VDO '99/00 93C86
• G4 VDO '01 93C86
• G4 VDO '01/03 93C86
• G4 VDO '02/03 93C86,
• G4 MOT addr.line 24C02
• VW Jetta dash
• Jetta VDO '00 93C66
• Jetta VDO '99/01 93C86
• Jetta VDO '01 93C86
• VW Passat dash
• Passat B5 MM HC11KG4
• B5 VDO 93C66
• B5 VDO '99/01 93C86
• B6 VDO '01/02 93C86
• B6 VDO '03/04 93C86
• MOT addr. line 24C02
• VW Pointer dash
• Pointer '05/06 93C66
• VW Polo dash
• Polo VDO '01/02 93C86
• Polo VDO '01/04 93C86
• Polo VDO crypto 93C86
• VW Polo ECU
• Polo '04 ECU 1.4 MM 95320
• VW Sharan ECU
• Sharan '00/04 EDC15 24C04
• Sharan 06/07 EDC16U31 95320
• VW Touran ECU
• ECU EDC16U34 '06/07 95320
• VW Transporter dash
• T4 VDO '01/03 93C86
• T5 VDO '03/07 93C86
• VW Transporter ECU
• '00/04 ECU EDC15 24C04
• '03/06 ECU EDC16U1 95320
• '03/07 ECU EDC16U31 95320

Immo

• Fox '08 Brazil 93LC56
• Immo HC05B6 [0F10V]
• Immo HC05B6 [0B91T]
• Immo HC05B8 [3D33J]
• Immo TMS370C002 (PLCC28)

ECU

• 00/04 ECU EDC15
• 03/06 ECU EDC16U1
• 03/07 ECU EDC16U31
• 06/07 ECU EDC16U34

Additional NATS4/NATS5 license

Supported NATS4 units:

5WK4738, 5WK4750, 5WK4803, 5WK48543A, 5WK48543B, 5WK48692

Supported NATS5 units:

5WK4 8041 AG, 5WK4 8042 AG, 5WK4 8042 AR, 5WK4 8643 AG, 5WK4 8643 BG, 5WK4 8644 AG, 5WK4 8644 BG, 5WK4 8644 CR.

NOT SUPPORTED:

5WK4 8645 AG.

Works via KLCAN adapter
