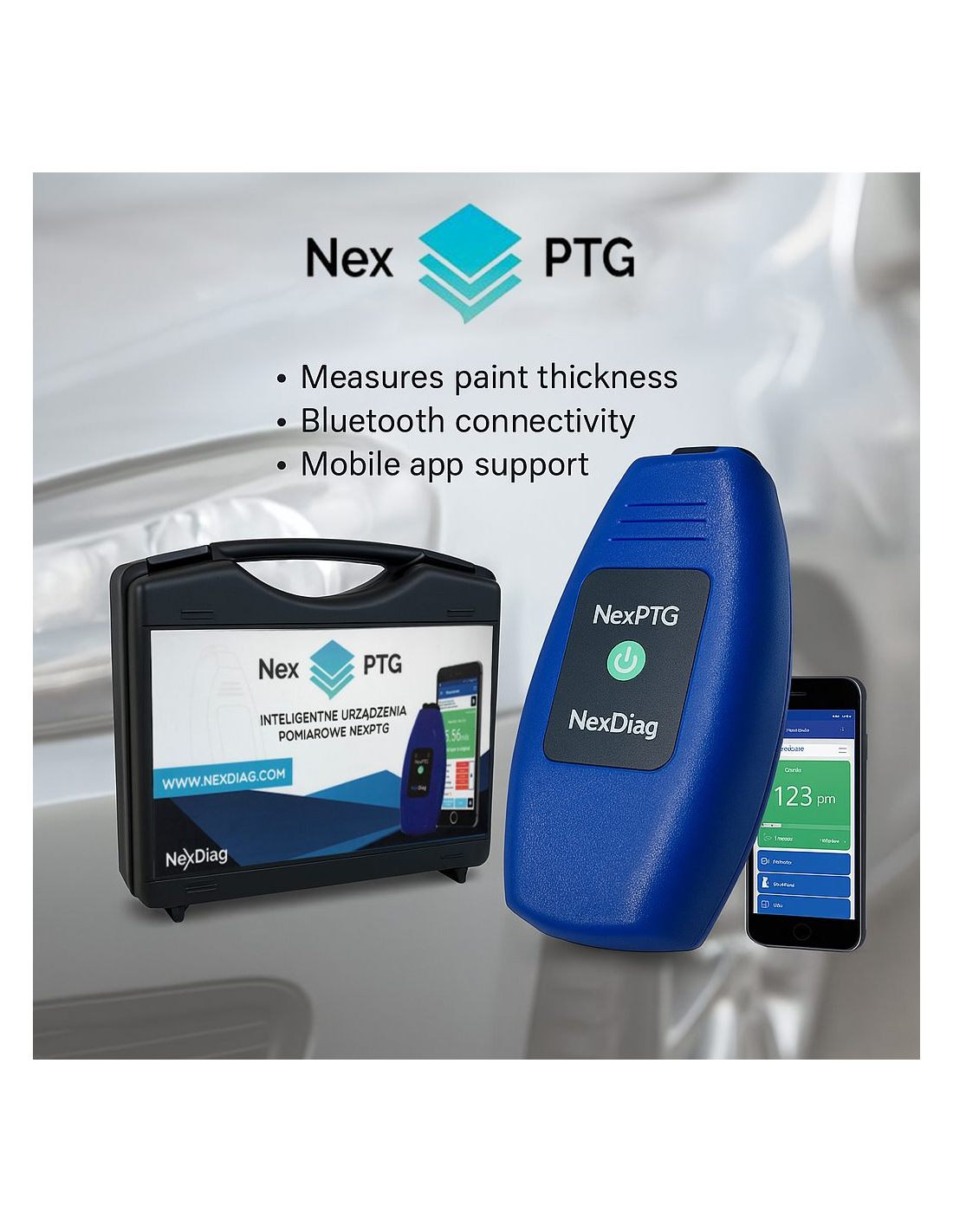

NexPTG - Paint coating thickness gauge NexPTG Professional (Toolcase)

Product Information

SKU:

NexPTG

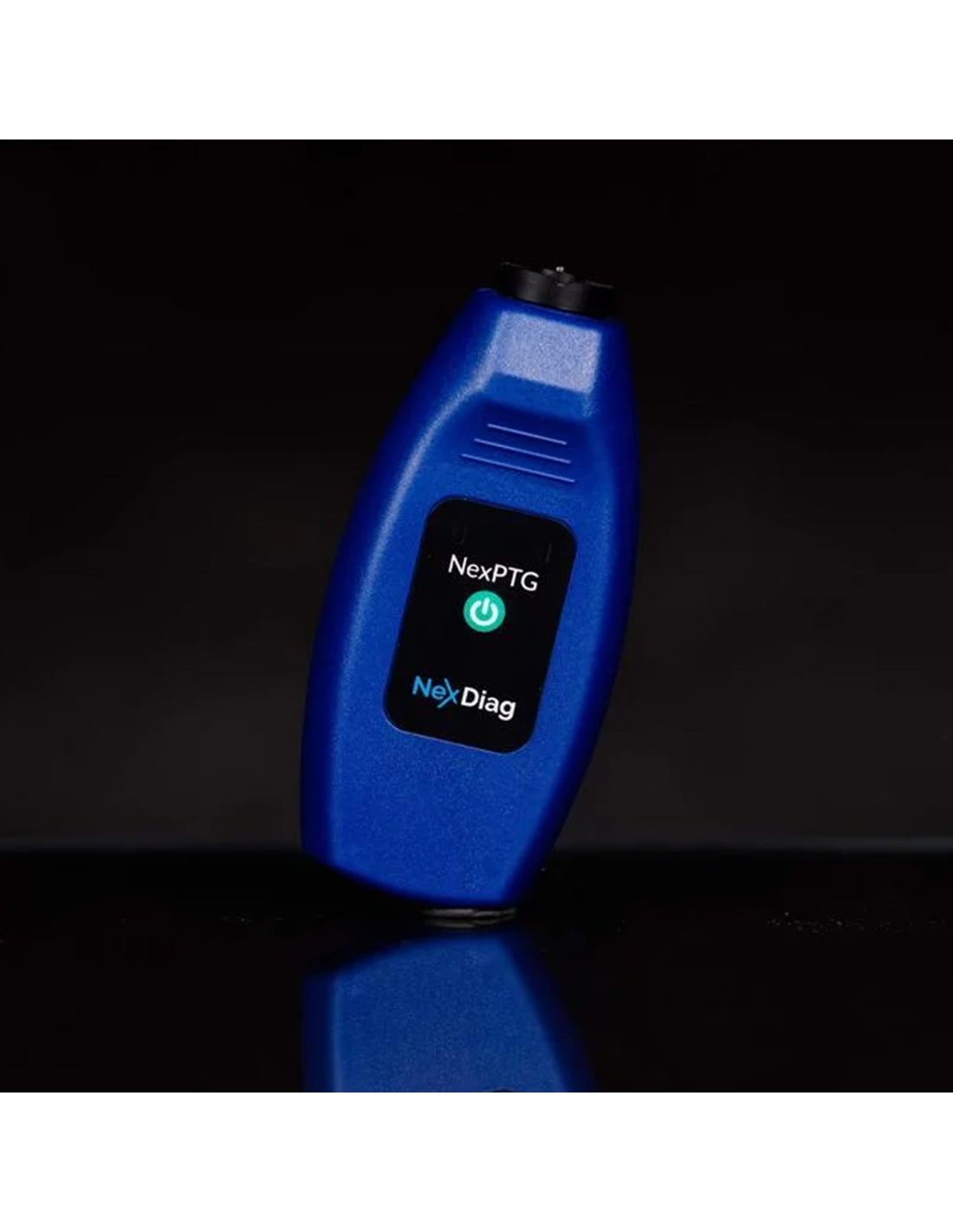

NexPTG Professional is an advanced paint thickness gauge designed for professionals in the automotive, detailing and appraisal industries. Thanks to state of the art technology, the device provides precise measurements on a variety of surfaces, including curved surfaces, which is key to accurately assessing the condition of the paint finish. Using the NexPTG Professional increases professionalism in the eyes of customers, giving them confidence that the assessment of the vehicle's condition is carried out with the utmost accuracy.

The NexPTG Professional meter allows you to create reports from paint thickness measurements, containing car data, parameters and measurement results. The report can be personalized and the finished document can be easily exported and shared, which increases the professionalism of work.

Testing substrate: Steel [Fe] / Zinc-plated steel [Fe+Zn] / Aluminum [Al]

Recognized substrate: [Fe] / [Fe+Zn] / [Al]

Range of measurement: 0 - 2500 μm (0 – 98.43 mils)

Type of probe / End of probe: movable/spherical

Possible measurement on curvatures

Resolution of measurement: 1 μm (0.04 mils)

Measurement memory: up to 4000

Wireless transmission: Bluetooth 4.0 LE

SAPL Extended

Creation of reports and measurement history

API communication

Supported systems: iOS / Android

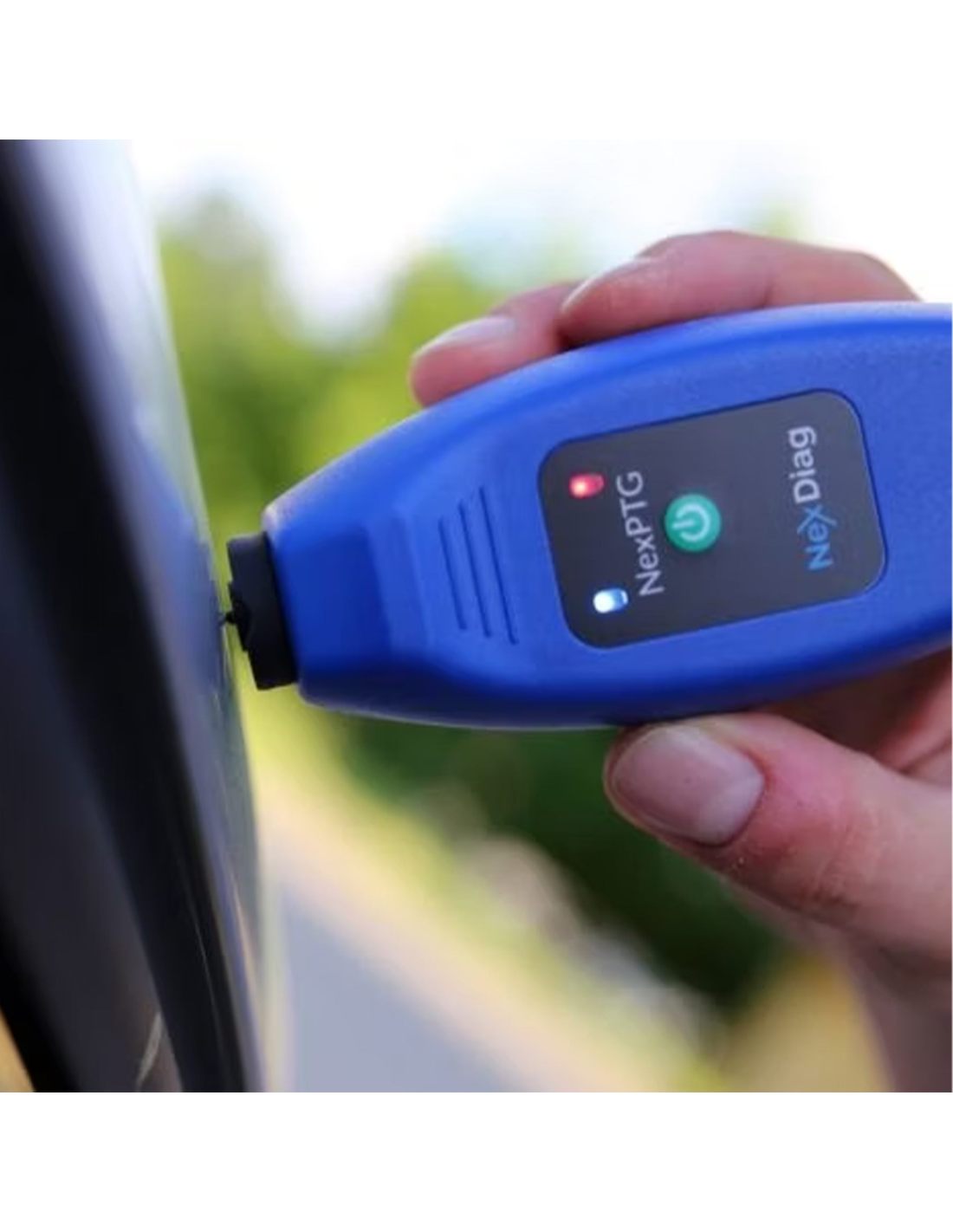

✅ The NexPTG Professional device allows for precise measurement on flat and curved surfaces thanks to the spherical probe

✅ Increased work efficiency thanks to the suggestion of measuring points, automatic substrate recognition and report generation, which allows for faster and more accurate vehicle testing

✅ Connection with the dedicated NexPTG app, which can be used for both commercial and non-commercial purposes, offering a versatile and simple interface and functions that are constantly expanded through cyclical updates.

Key features:

• Measurement range: 0 - 2500 µm (0 - 98.43 mils) - allows for a wide range of applications, from thin paint coatings to thick layers of putty.
• Measurement resolution: 1 µm (0.04 mils) - enables accurate readings, essential for professional analyses. Substrate recognition: Steel (Fe), Galvanized steel (Fe+Zn), Aluminum (Al) - versatility in recognizing various materials used in vehicles.
• Communication: Bluetooth 4.0 LE - wireless connection to the mobile application for easy reading and analysis of data.
• Measurement memory: Up to 4000 results - ideal for complex inspections and long-term data storage.

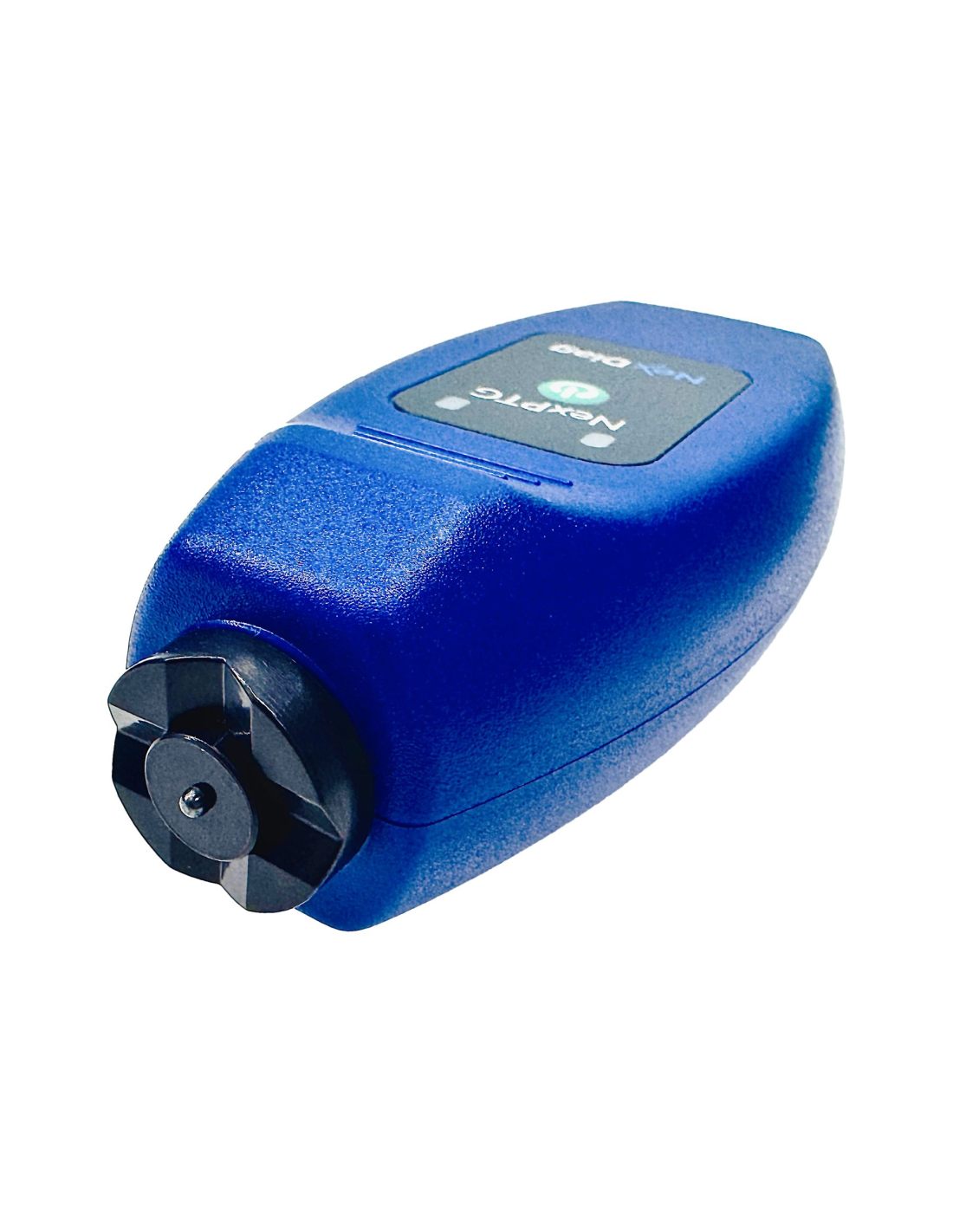

• Spherical probe: Speeds up measurement by enabling measurement on curves and reduces the impact of contamination on the accuracy of the reading.
• No display: More options in the mobile application, which extends the battery life of the device.

Professional report

Create detailed reports with measurement results. With the dedicated NexPTG mobile application, each report can be customized to the user's needs, including the company logo, detailed vehicle information and a full set of results. Reports can be easily exported and shared with clients, which significantly increases professionalism and trust in the eyes of customers.

Easily customize the report to your needs by adding a logo, watermark, and company information. Create custom sets of measurement points, select modules such as vehicle data, photos, tires, and comments, and decide which ones will be visible. For easy analysis, paint thickness is presented in color on the vehicle graphic, and symmetrical measurements allow you to compare results for the left and right sides. Measurement photos enhance the report with values ​​and substrate type, which are automatically added.

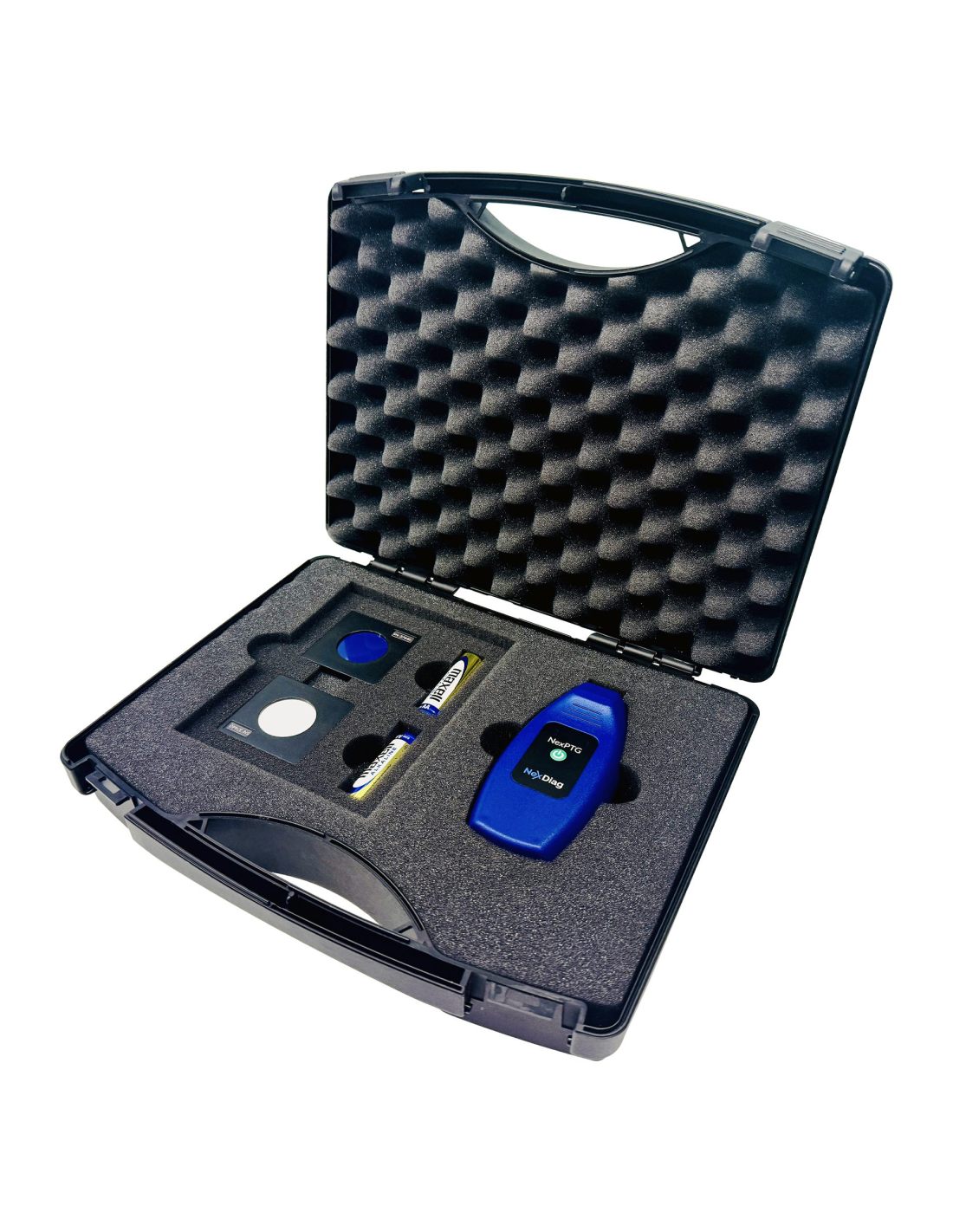

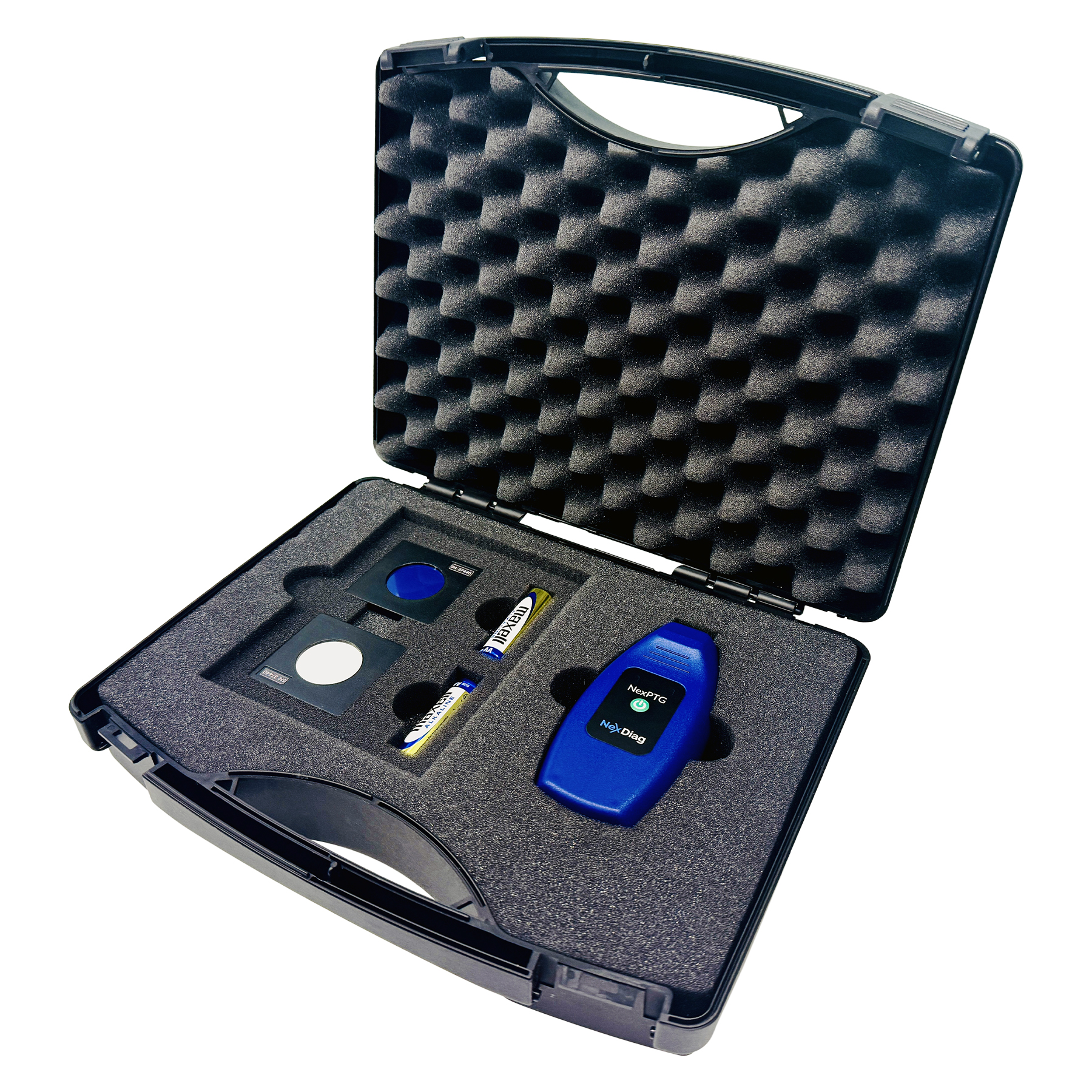

The set includes

• NexPTG Professional EN gauge

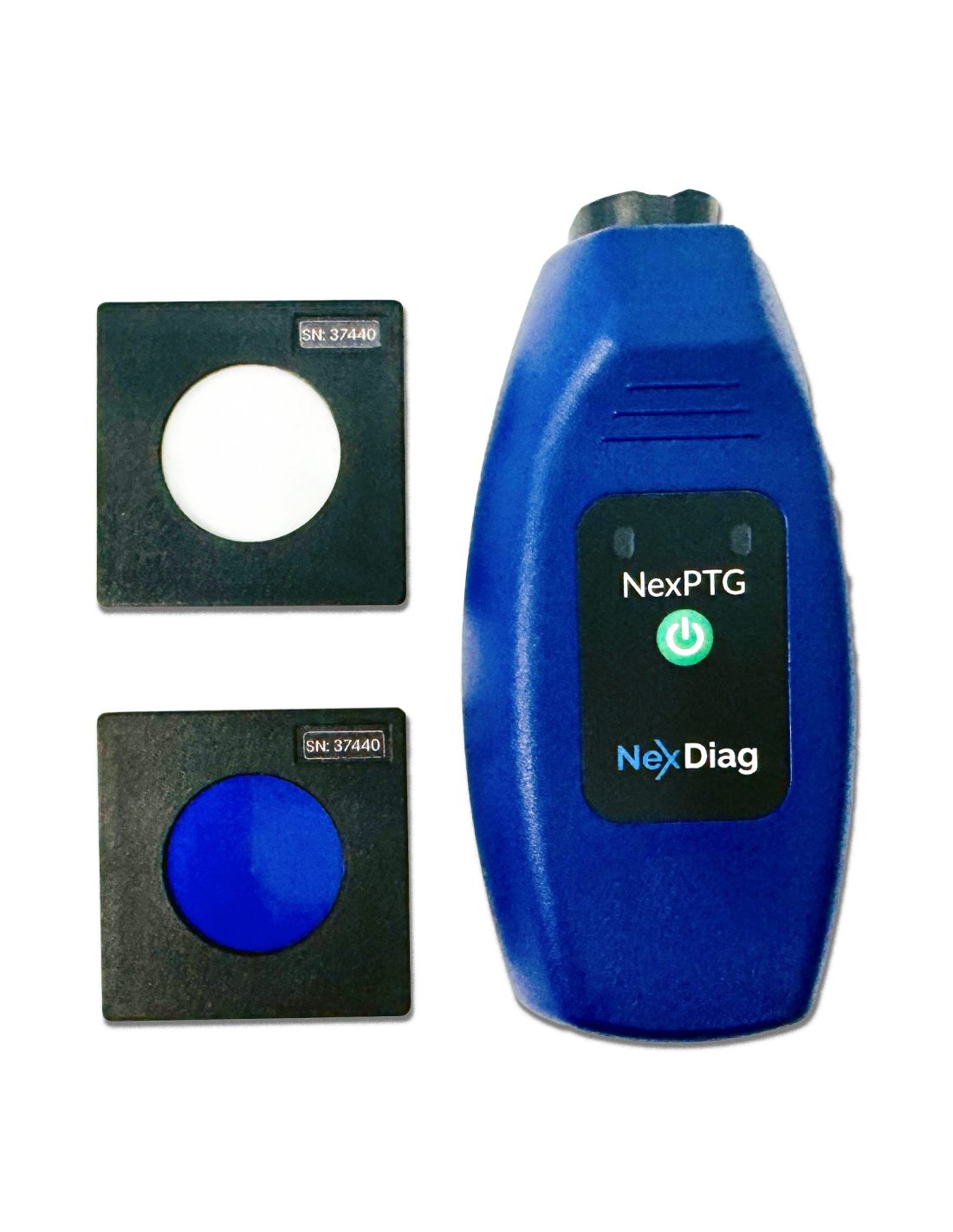

• calibration kit
• user manual
• a set of alkaline batteries

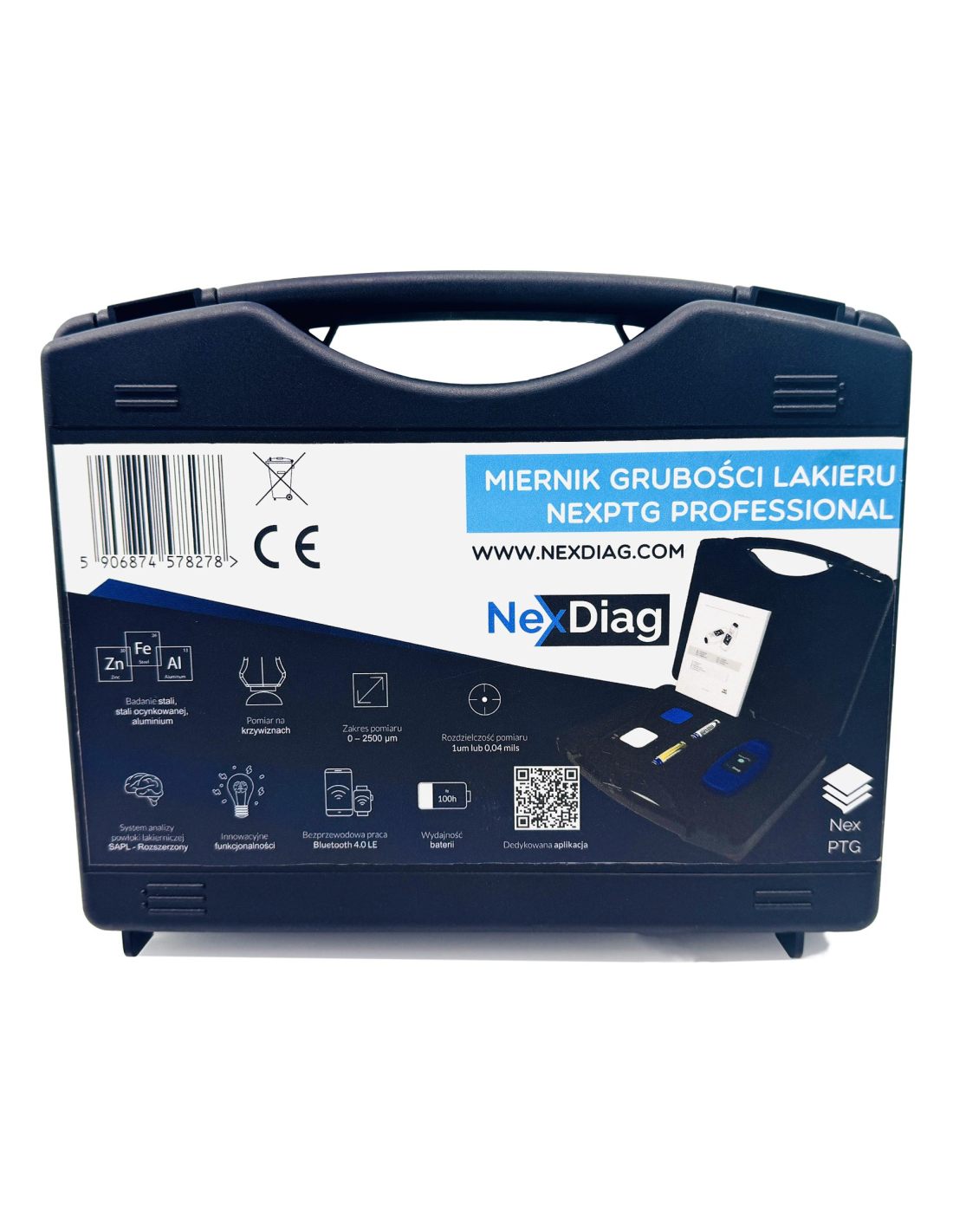

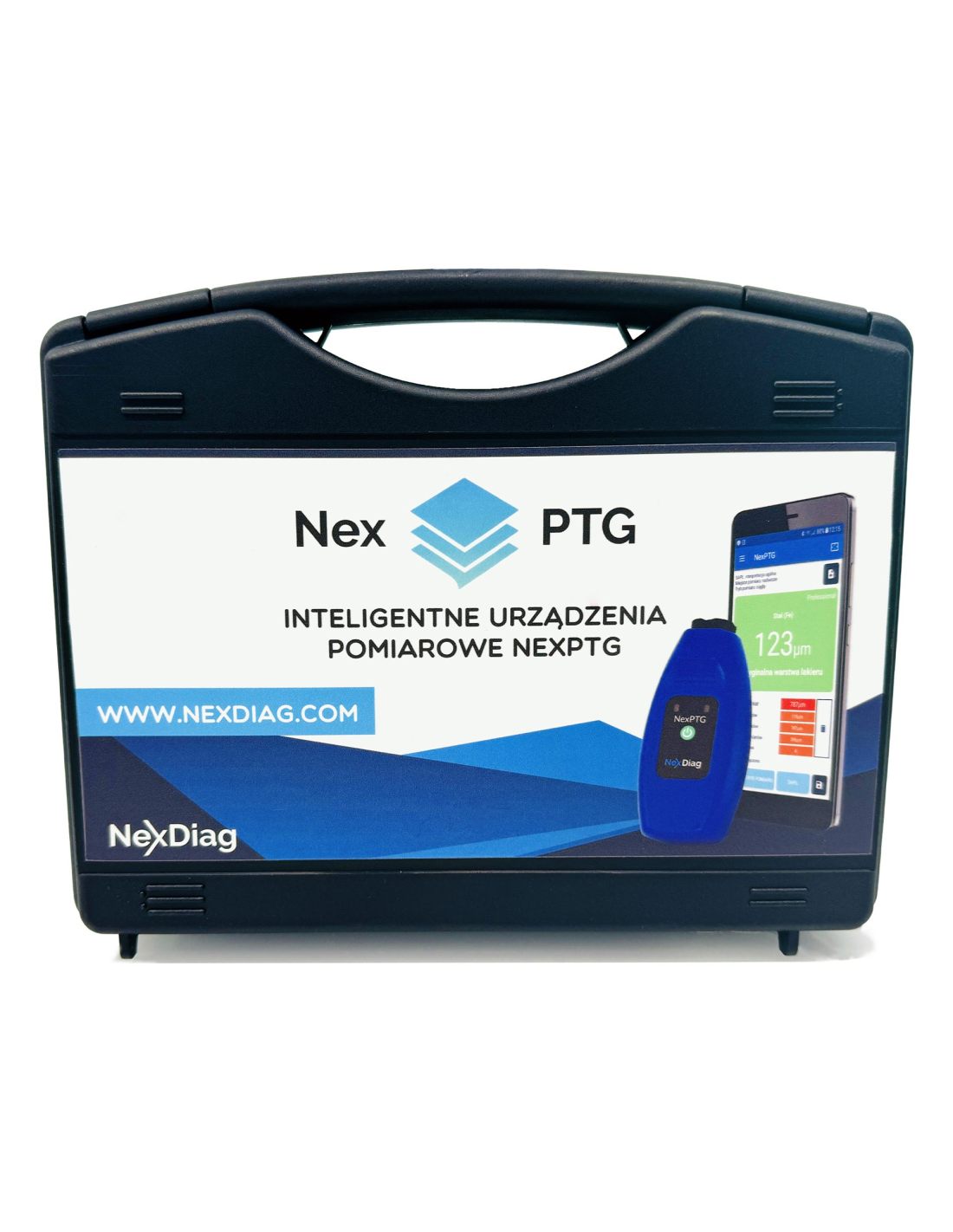

• carrying case
