FRO680 - Agricultural testing ground AVTRON Froment 680 Dynamometr

Product Information

SKU:

FRO680

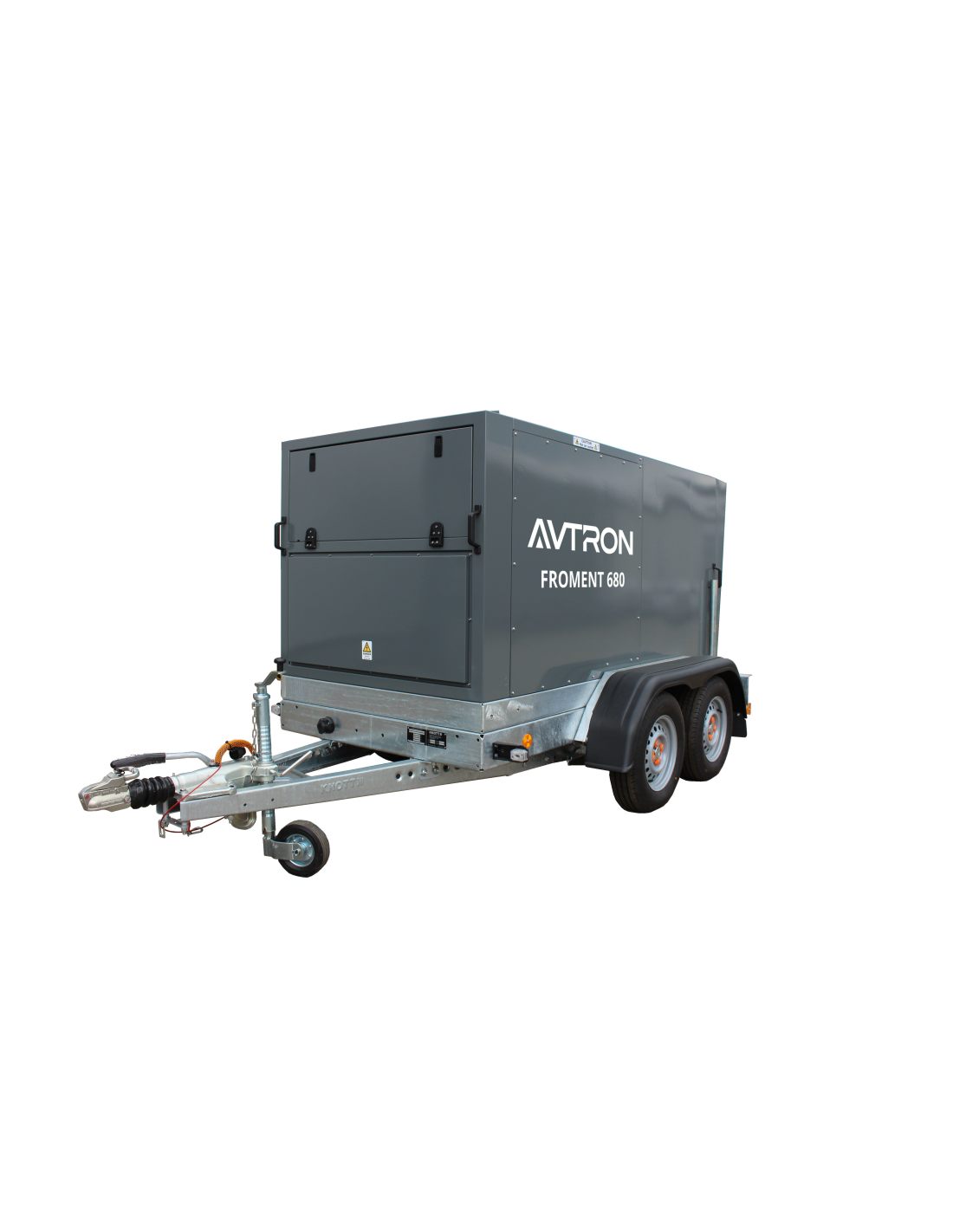

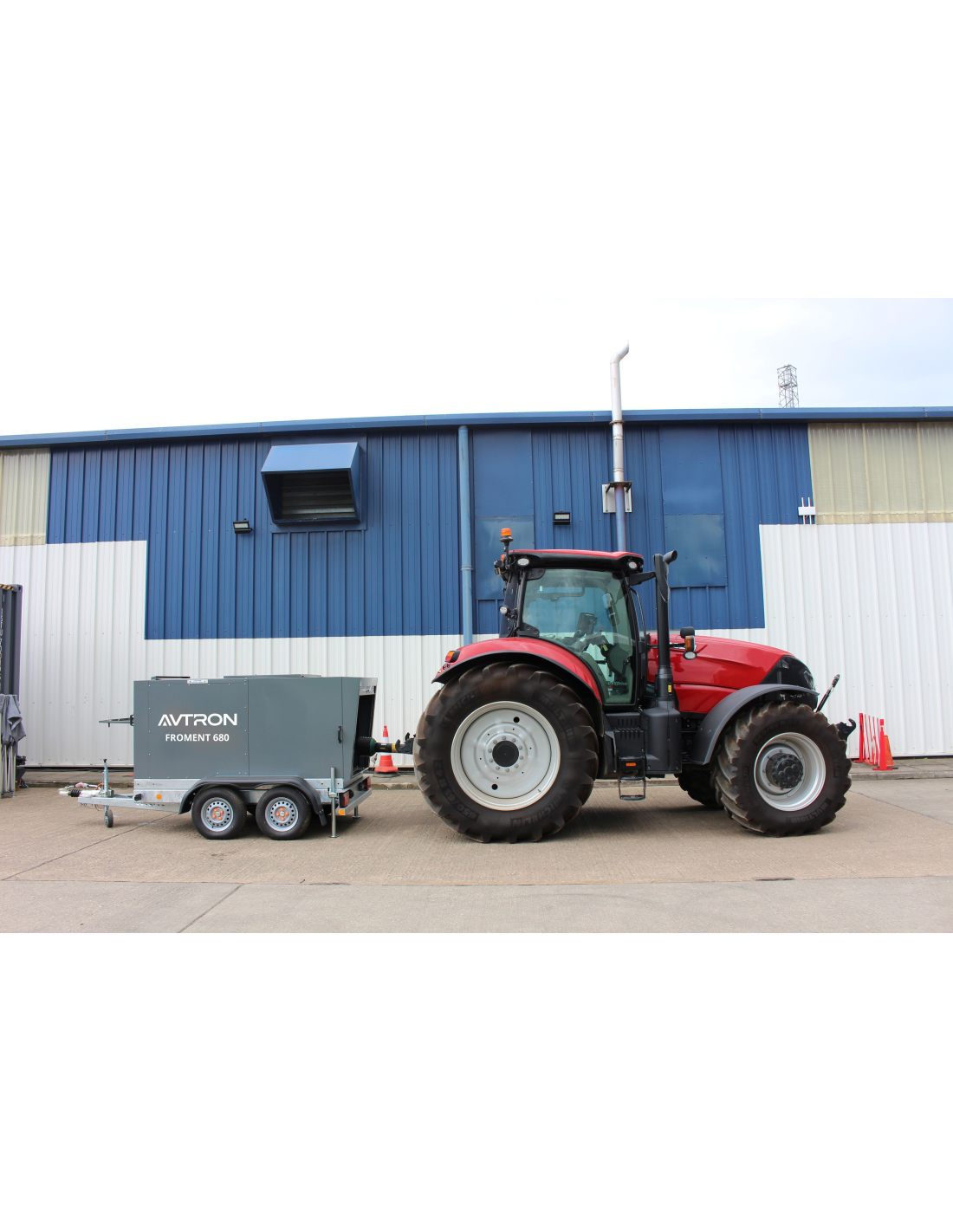

The Froment 680 can test up to 680PS on a range of agricultural machinery. Available as static or trailer mounted

the Froment 680 is engineered to the highest standards and is the PTO dynamometer of choice for global leading agricultural machinery manufacturers.

Specifications:

Key Features

• Available as a static or trailer mounted unit.
• Air cooled with minimal cool down period.
• Powered by a single phase 13-amp or 16-amp mains supply.
• Supplied with all the necessary drive shafts to complement the dynamometer’s performance.
• Available with a Hand-held control or comprehensive PC software for data capture and reporting.
• Three different speed ranges. Tractor power take off speed range 270-1250 rpm. Remove the gearbox for direct drive range of 480-2200 rpm (optional removal tool is available).
• Five different test modes are standard: Automatic, Constant speed, Constant power, Direct load and Memory.
• Used by leading manufacturers, for the development of new products and the training of service and sales personnel.
• Low start-up torque means engines from as little as 10 hp or up to 680 hp can be tested.
• No need for the operator to have prior knowledge where maximum power and torque occur in the engines performance curve. Auto mode does the test for you with complete repeatability.
• Inbuilt protection and detection keeps the user informed of dynamometer status.
• Low maintenance and minimal calibration required.

The mobile version is available for 80.760 Euro gross
