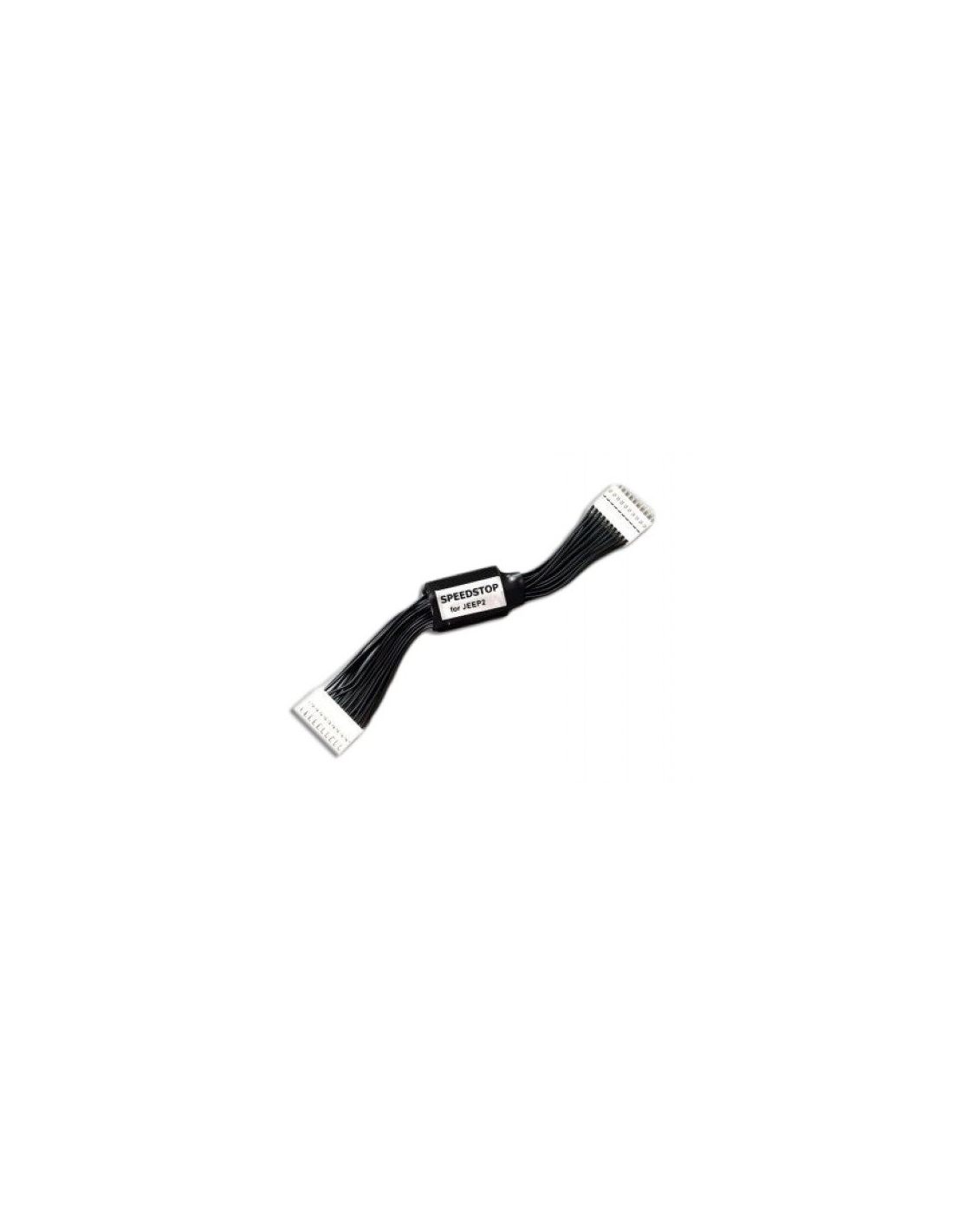

SPEEDSTOPJEEP2 - Plug and Play KM freezer for Jeep Grand Cherokee 2016-2018

Product Information

SKU:

SPEEDSTOPJEEP2

For Jeep Grand Cherokee 2016-2020 cars drive test or dyno test. While car drive test is possible to stop (freeze) odometer counting.

Plug and Play device with easiest connection way possible, no soldering is required in the installation process.

Works with :

• Jeep Grand Cherokee 2016-2018;
• Jeep Wrangler 2016-2023;
• Jeep Gladiator 2020-2023;

Instrument cluster must look like in picture.

How to install:

Plug and Play device with easiest connection way possible, no soldering is required in the installation process. Remove instrument cluster - look video how to do this. Disconnect cluster brown connector. Now connect SPEEDSTOP female connector to cluster - check position of from photos. SPEEDSTOP male connector connect to car cluster connector - check twice connectors orientation. Use additional cable ties for fixing connectors.

Speedometer works correctly all time in SPEEDSTOP mode, just odometer not counting.





Using SPEEDSTOP on Jeep GC: (hazard indicator on speedometer blinks every time when working mode are changed­):

Push 3x OK button or 4x High beam light switch (hazard indicator on speedometer blinks 1 time)  = Odometer freezed, Speedometer works normal;
Push 3x OK button or 4x High beam light switch (hazard indicator on speedometer blinks 2 time) = back to normal mode, Odometer and Speedometer works normal.

After Ignition OFF/ON SPEEDSTOP keeps selected working mode.

If you remove SPEEDSTOP adapter after test drive, odometer not changing.
