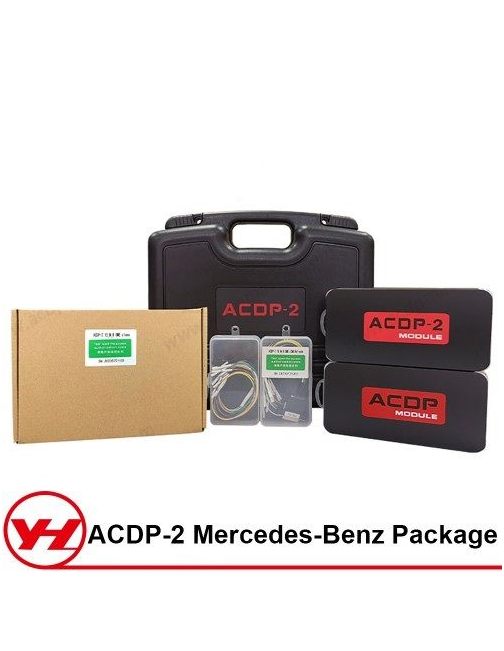

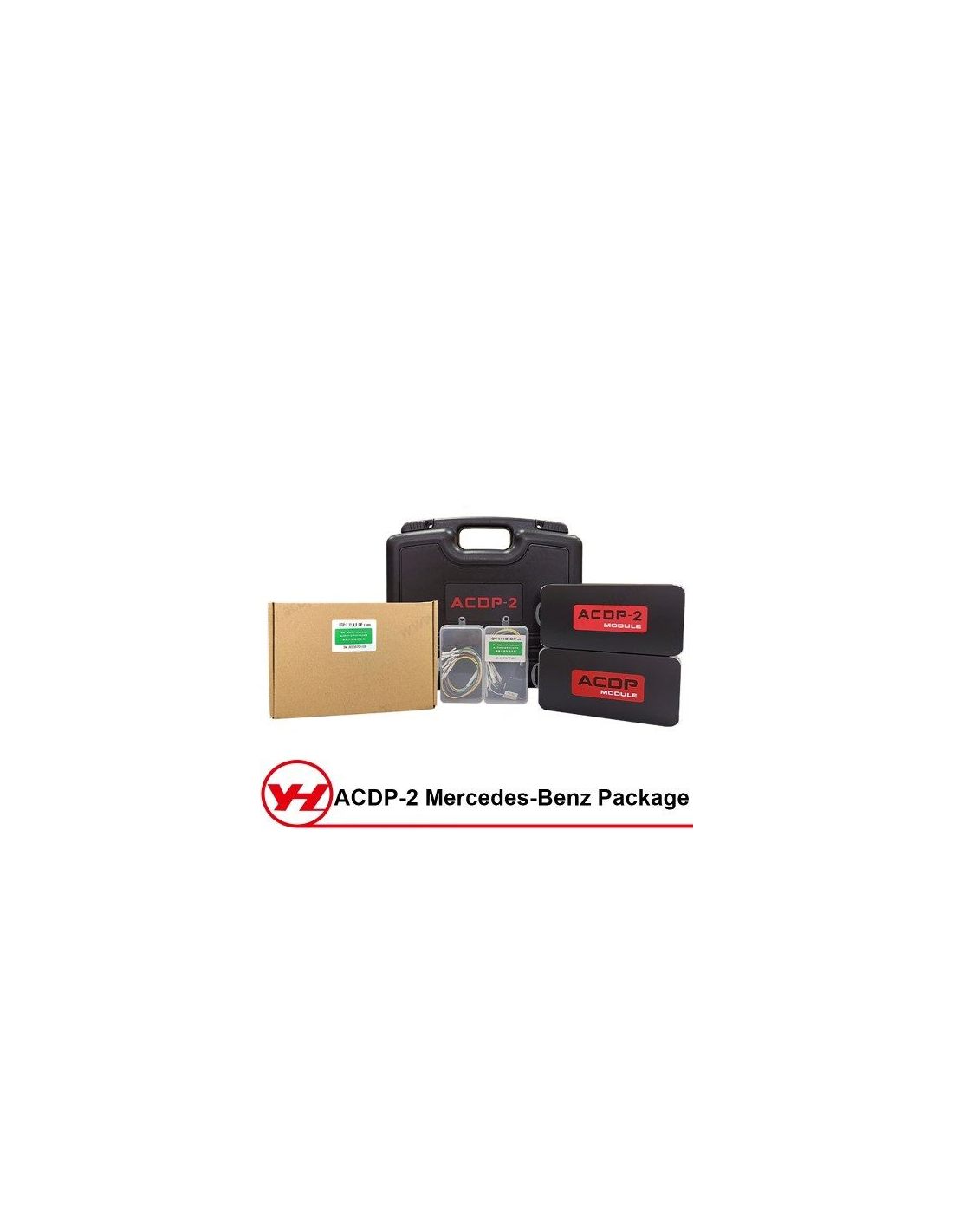

YH.MBP - YANHUA ADCP 2 Mercedes Benz Package

Product Information

SKU:

YH.MBP

Package Features:

ACDP-2 Basic Module with License A801

Support 93 /24/ 25 / 35/ 95 Series EEPROM in circuit programming (ICP) and on adapter board programming (OBP),

and parts of Freescale / NEC MCU in circuit programming (ICP). This module is a necessary basic configuration for other modules.

ACDP-2 Module 15 Mercedes Benz DME Clone Work via Bench Mode with License A100

Module Function:

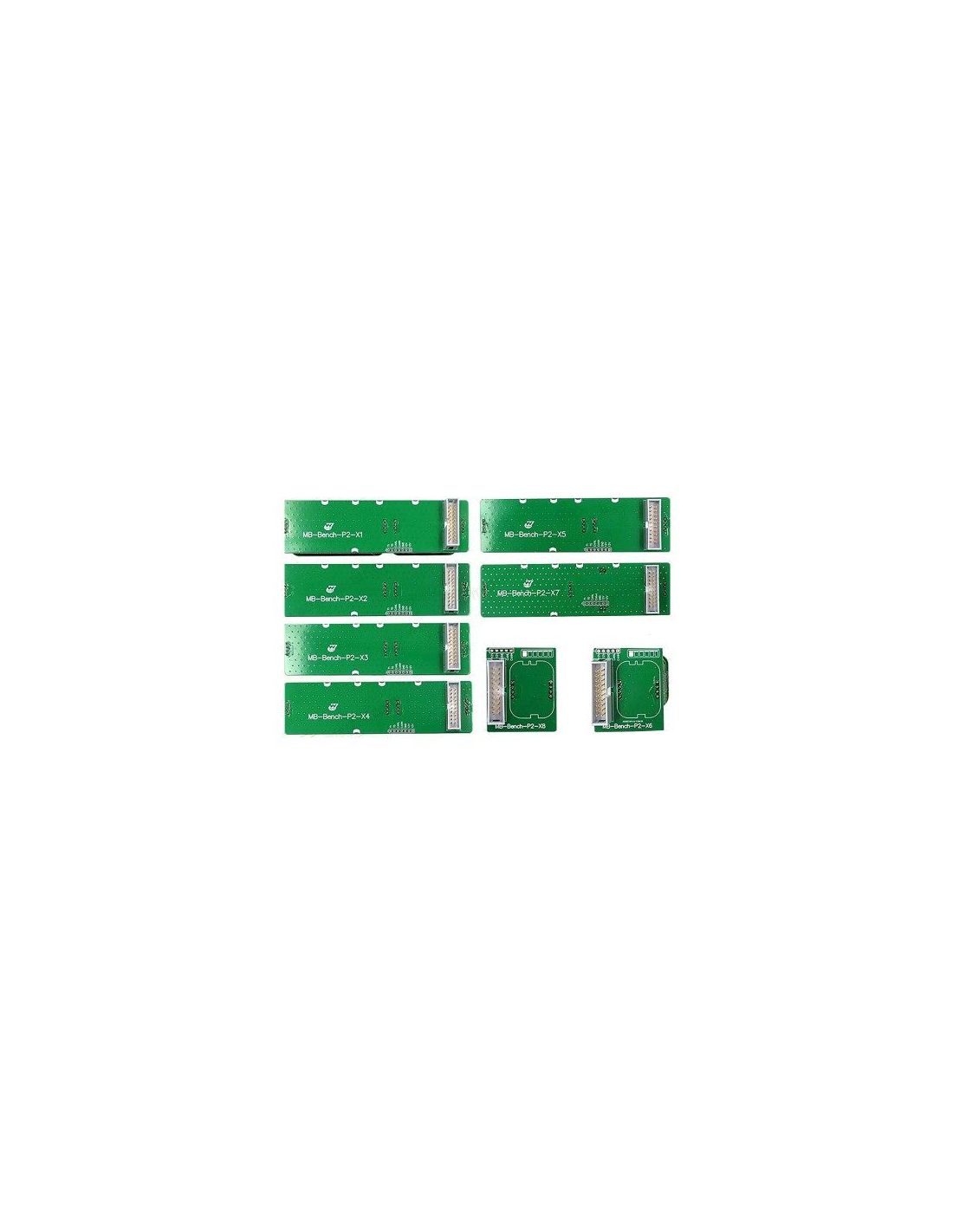

X1: MB-DME-Adapter X1 supports DME clone of Mercedes-Benz 152/157/274/276/278(MED17.7.3),

272/276(MED17.7.3.1),276/278(MED17.7.1),etc

X2: MB-DME-Adapter X2 supports DME clone of Mercedes-Benz 133/270/274(MED17.7.2),etc

X3: MB-DME-Adapter X3 supports DME clone of Mercedes-Benz 260/264(MED17.7.7),etc

X4: MB-DME-Adapter X4 supports DME clone of Mercedes-Benz diesel vehicle 642(EDC17CP01), 642/651(EDC17CP46),

626/622/651(EDC17C66), 651/642(EDC17CP57), 651/642(EDC17CP10), etc

X5: MB-DME-Adapter X5 supports DME clone of Mercedes-Benz 272/279(ME17.7), etc

X6: MB-DME-Adapter X6 supports DME clone of Mercedes-Benz diesel vehicle 642/654(MD1CP001), etc

X7: MB-DME-Adapter X7 supports DME clone of Mercedes-Benz 177/178(MED17.7.5), etc

X8: MB-DME-Adapter X7 supports DME clone of Mercedes-Benz GLS/GT(MG1CP002), etc

Module Advantages:

1. No need to open DME shell, no need to drill hole on DME, no need to plug wire.

2. The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite

direction and wrong place, simple and efficient, plug and play, safe and reliable.

Yanhua Mini ACDP Module 16 Benz Gearbox Renew and Refresh with License A101

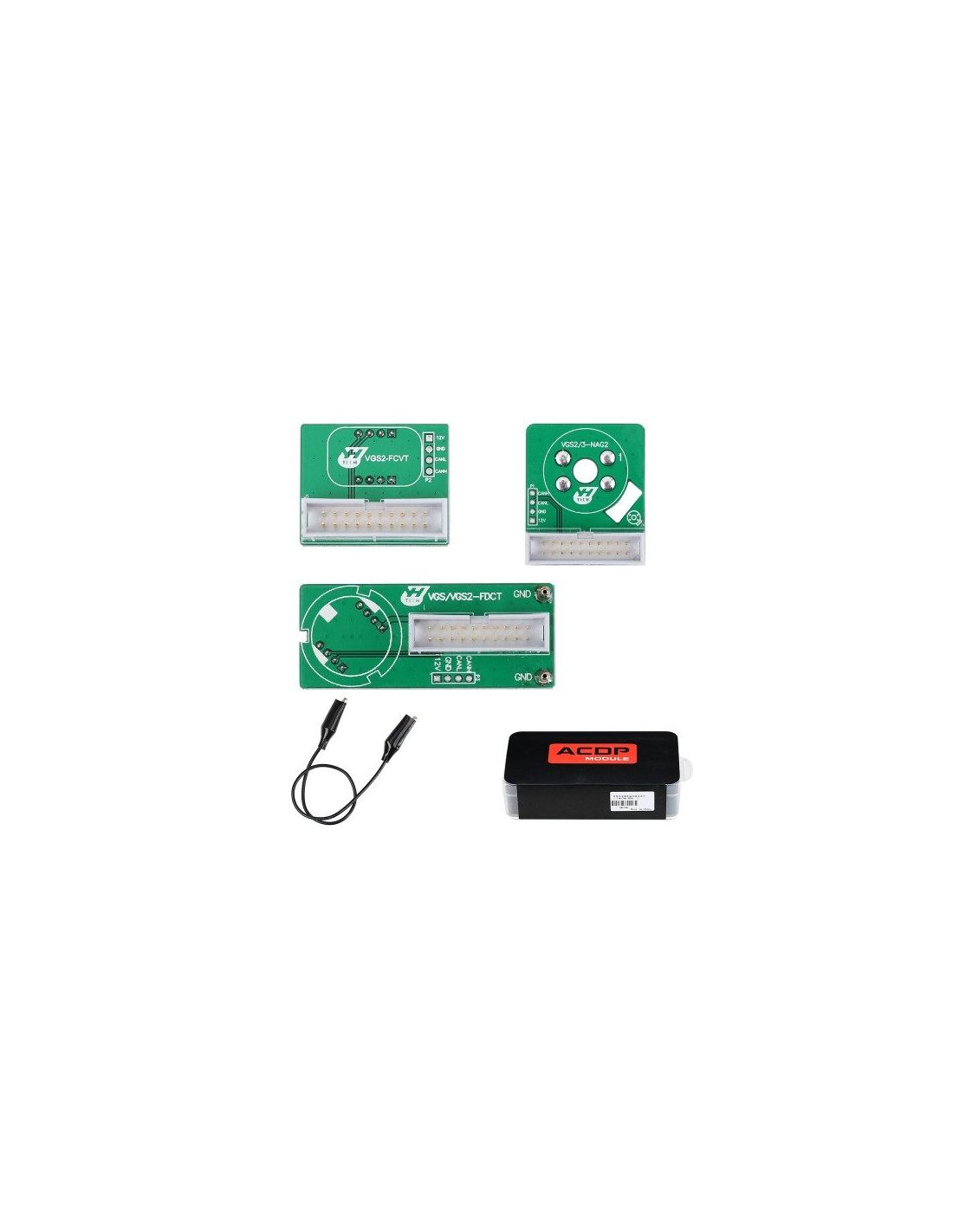

Support cloning Mercedes-Benz (VGS-FDCT/ VGS2-FDCT) dual-clutch gearbox.

Support cloning Mercedes-Benz 722.8 (VGS2-FCVT) gearbox.

Support Mercedes-Benz 722.9 the second generation (VGS2-NAG2) gearbox refresh.

Support Mercedes-Benz 722.9 the third generation (VGS3-NAG2) gearbox refresh.

The special interface board connection method replaces the traditional plugging wire method to prevent plug wire to opposite direction and wrong place, simple and efficient, plug and play, safe and reliable.

Yanhua Mini ACDP-2 Module 18 Mercedes Benz DME and ISM Refresh with License A102

Module Functions:

1. Support Mercedes-Benz DME Refresh

CR3.XX/CR4.XX/CR5/CR6/CR60.XX/SIM271DE2.0/SIM4LKE/SIM271KE2.0/CRD.11/CRD2.XX/ME9.7/MED17.7.X/SIM266 etc.

2. Support Mercedes-Benz ISM Refresh

Yanhua Mini ACDP-2 Module 19 SH725XX Gearbox Clone with License A000

1. Supports all ZF 8HP gearbox clone.

Supported car brands: BMW, JLR, VW/Audi, Rolls-Royce, Porsche, Bentley, Aston Martin, Lamborghini, Maserati, Dodge, Jeep, Chrysler, etc

2. Support VW/Audi DQ380/DQ381 ODE gearbox clone.

3. Support Mercedes-Benz 9GT (VGS-NAG3) gearbox clone.

4. Support BMW 7 speed dual clutch (GETAG 7DCT) gearbox clone.

5. Support BMW 7 speed dual clutch (DKG) gearbox clone.

Package List:
