Product Information
SKU:
SPEEDSTOPTOY16
For Toyota year 2014+ cars drive test or dyno test. While car drive test is possible to stop (freeze) odometer counting.
- Auris 2014-2018;,
- Avensis 2014-2018;
- Corolla 2014-2018;
- RAV4 2014-2018;
- Camry 2014-2019;
- Camry V70 2017+;
- Yaris 2013+;
- Avalon USA 2017+;
- CH-R 2016+;
The device was tested with older (up to year 2014) vehicles, Speedstop device works and odometer stops counting but indication of the device activation does not work.
It is recommended to activate the device while driving to see if it is activated and working properly.

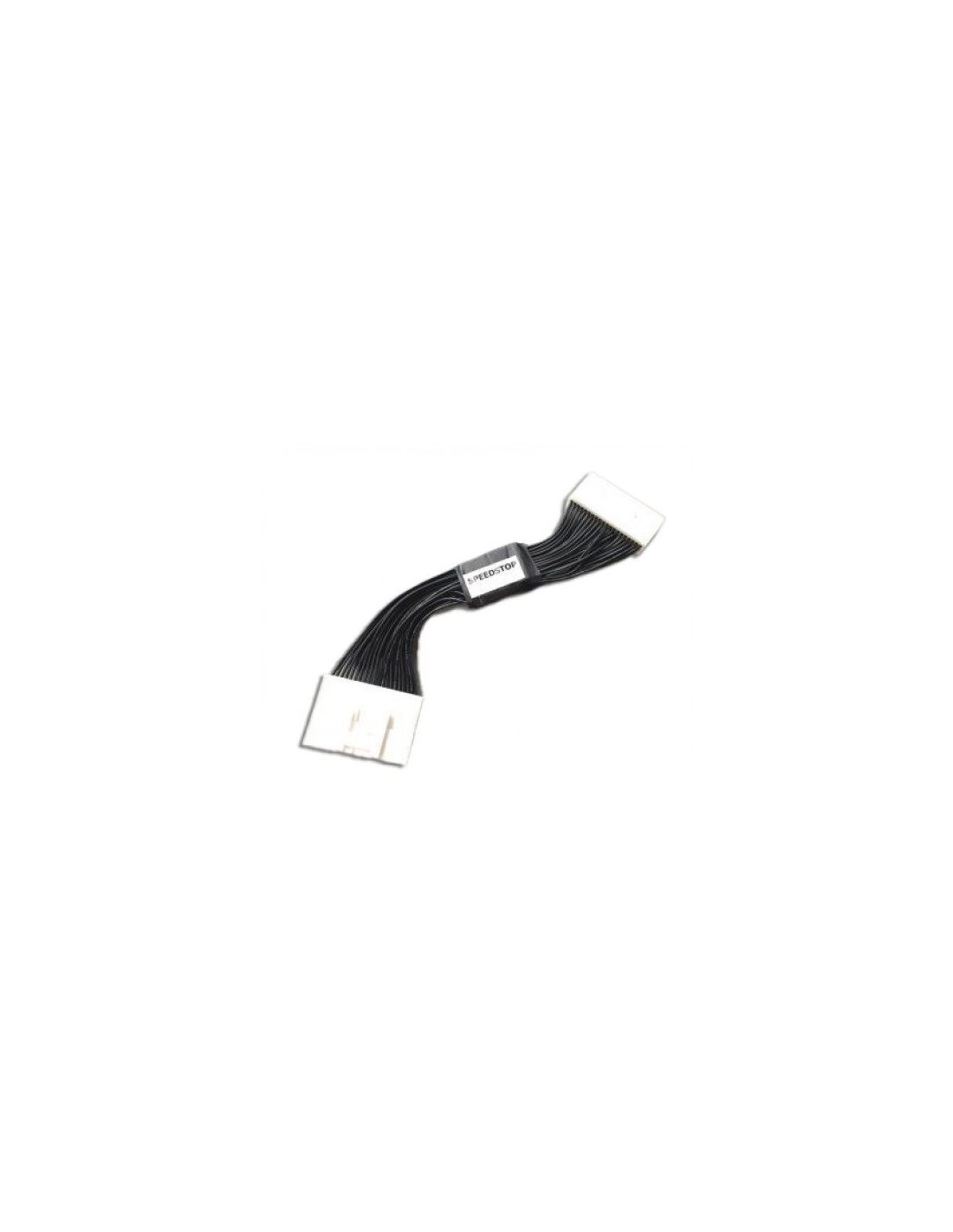

Plug and Play device with easiest connection way possible, no soldering is required in the installation process. Remove instrument cluster. Disconnect cluster connector. Now connect SPEEDSTOP female connector to cluster. SPEEDSTOP male connector connect to car cluster connector.
Speedometer works correctly all time in SPEEDSTOP mode, just odometer not counting.
Using SPEEDSTOP on Toyota 2014-2018: (High beam light on cluster will blink every time when working mode are changed):
- Push 4x High beam light switch (lights must be switched OFF) (High beam light on cluster will blink 1x ) = Odometer freezed, speedometer, cruise other functions works fine;
- Push 4x High beam light switch (lights must be switched OFF) (High beam light on cluster will blink 2x ) = SPEEDSTOP function is OFF, instrument cluster works like usually;
After Ignition OFF/ON SPEEDSTOP keeps selected working mode.
If you remove SPEEDSTOP adapter after test drive, odometer not changing.
