SPEEDSTOPLAMBO5 - for Lamborghini Huracan 2014+

Product Information

SKU:

SPEEDSTOPLAMBO5

 For Lamborghini Huracan cars testing. While car drive test is possible to stop (freeze) odometer counting.

Plug and Play device with easiest connection way possible, no soldering is required in the installation process.

Works with :

•     Huracan LP610-4 2014-2019 ;
•     Huracan LP580 2016-2019;
•     Huracan LP640 2017-2019;
•     Huracan Facelift 2019+;

How to install:

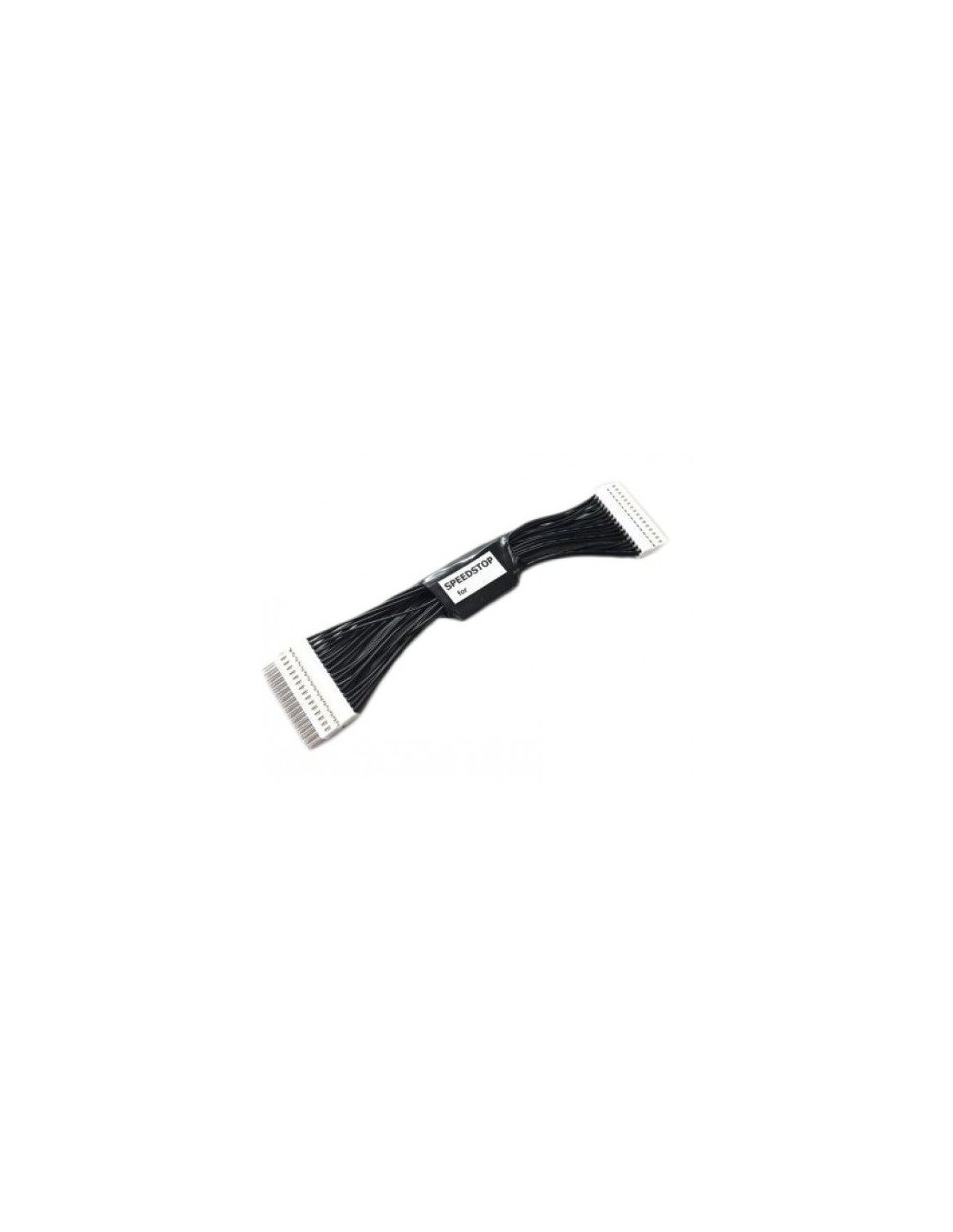

Plug and Play device with easiest connection way possible, no soldering is required in the installation process. Remove instrument cluster. Disconnect cluster grey connector and remove plastic cover from connector. Now put this cover on SPEEDSTOP female connector. SPEEDSTOP male connector connect to car cluster connector - check twice connectors orientation - on both connectors one side have trail - look picture. Use additional cable ties for fixing connectors.

Speedometer works correctly all time in Mode 2, just odometer slow down - after 100km drive test odometer will turn 10km.

Using SPEEDSTOP on Lambo: (hazard indicator on speedometer blinks every time when working mode are changed­):

• Push 4 time quickly HighBeam  switch (hazard indicator on cluster blinks 1 time)  = Odometer freezed, Speedometer not work;
• Push 4 time quickly HighBeam  switch (hazard indicator on cluster blinks 2 time)  = Odometer freezed (after 100 km will turn 10 km), Speedometer works normal;
• Push 4 time quickly HighBeam  switch (hazard indicator on cluster blinks 3 time) = back to normal mode, Odometer and Speedometer works normal.

After Ignition OFF/ON SPEEDSTOP keeps selected working mode.

If you remove SPEEDSTOP adapter after test drive, odometer not changing.
