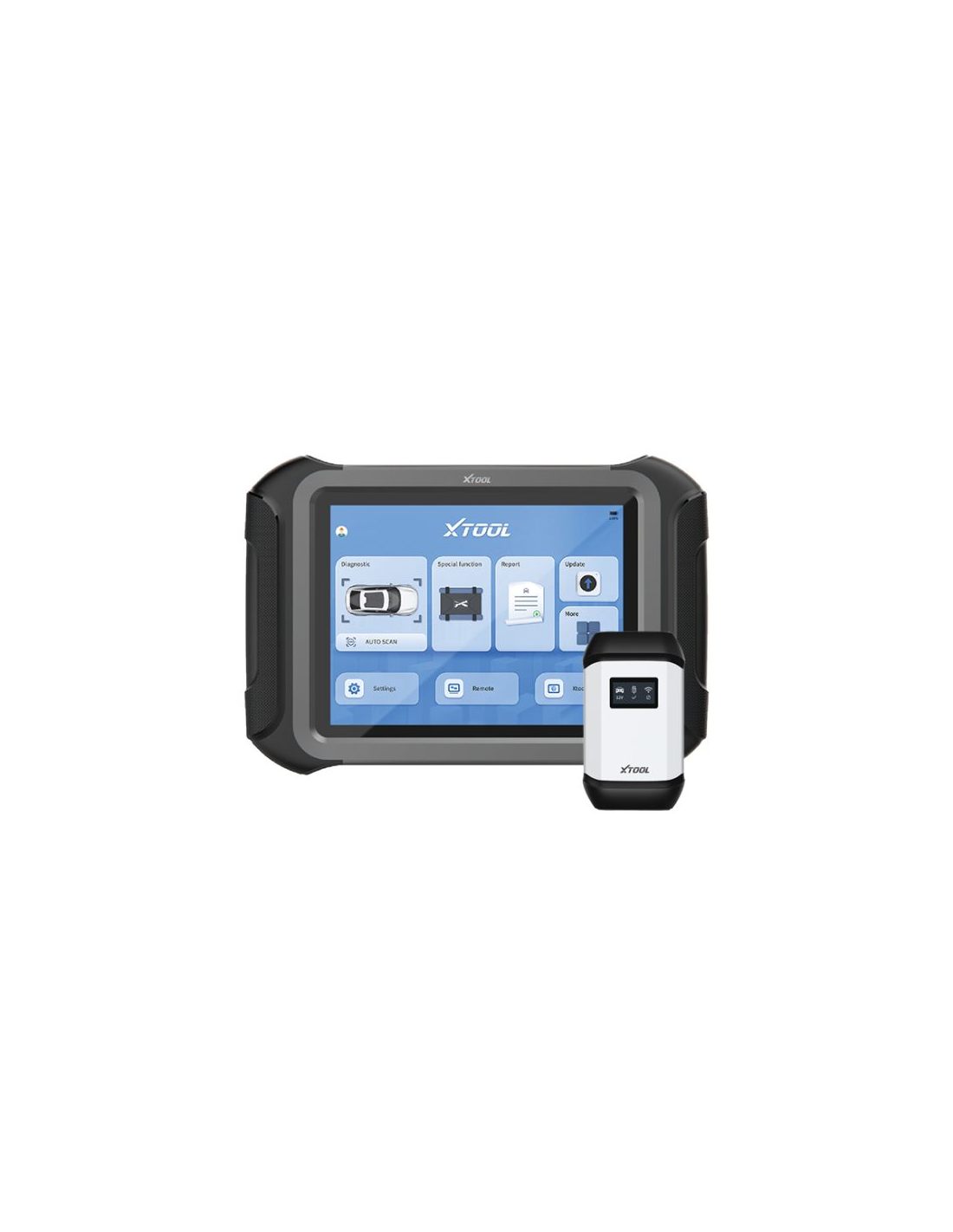

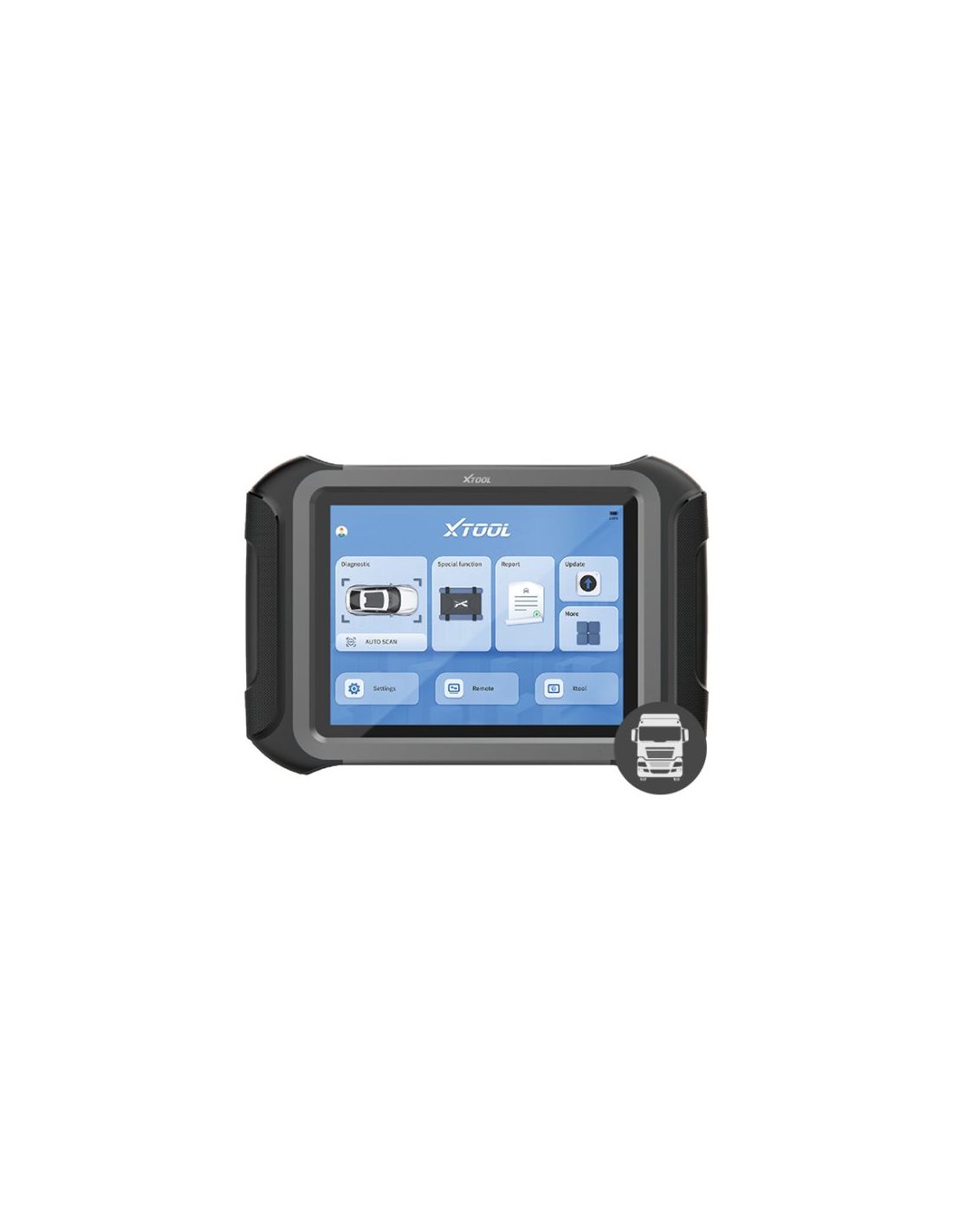

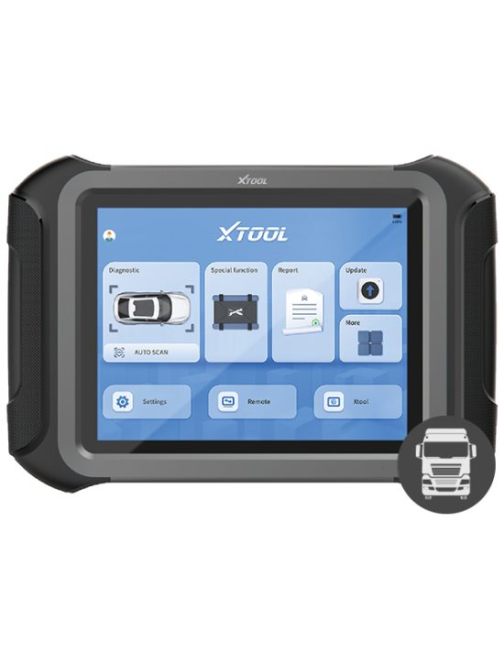

XT.D9HD - Xtool D9HD - Heavy Duty diagnostic device / key programmer

Product Information

SKU:

XT.D9HD

D9HD is an automotive smart diagnostic system designed for mechanics, electricians, and car maintenance shops. It supports full-system diagnostics for passenger cars, commercial vehicles, and heavy-duty trucks, including reading ECU version information, reading fault codes, live data, freeze frames, and bi-directional control tests. 42 common special functions, such as throttle matching, ABS bleed, maintenance light reset, EPB test, SAS, BMS, injector coding, DPF regeneration, and TPMS reset are supported. Under the system menu, you can also explore a wealth of special functions. 98% vehicle coverage, work on more than 85 brands, 10000 cars.

Description:

• 4-core processor/ 4+128G memory
• 9.7-inch capacitive touch screen (1024x768 P)/ android 10.0
• 12V and 24V passenger cars, commercials, hybrid and electric vehicles, light truck and heavy duty
• complete capabilities for codes, live data, actuation tests, adaptations and ECU coding
• displays live data in text, graph, analog and digital gauge for easy data review and analysis
• records and playbacks live data to pinpoint troubles of sensors and components
• topology Module Mapping: Color Coded All System Status Screen (on supported vehicles)
• remote technical support for convenient demonstration, training and increased customer satisfaction
• hot 42 relearn and reset services
• provides fault code guidance for VAG and BMW.
• dupports programmable module installation (offline programming) for Ford, Lincoln and Mazda; offline coding for VW, Benz and Mitsubishi
• automatic Wi-Fi updates available in new software releases

Parameters:

• operating System：Android 10.0,
• processor：4 Core 1.50GHz,
• memory：4G+128G,
• display：9.7-inch, 1024×768P,
• camera：8.0 Megapixel, AF with Flashlight,
• auto Input/Output：Microphone, Speaker,
• dimension (L×W×H)：313X218X30 mm,
• communication Method：Wi-Fi, Wired,
• connectivity：Type-C,
• working Voltage：9-36V,
• battery：6400 mAh, 7.2V,
• working Temperature：0 to 40℃,
• storage Temperature：-40 to 60℃,
• compatible Protocol：CANFD, DoIP.

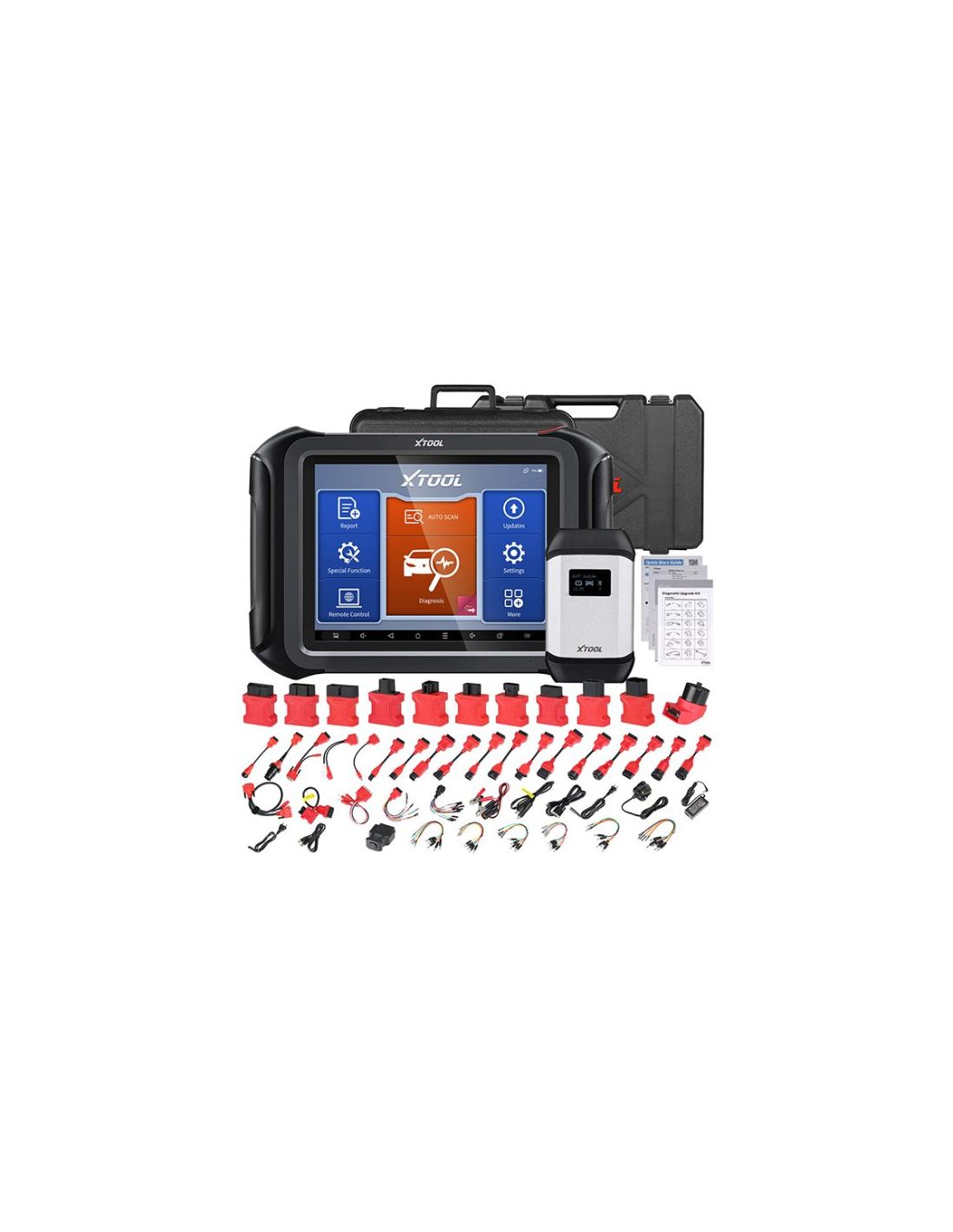

Packing list:

• D9HD programmer x 1 pc.
• VCI box x 1 pc.
• USB3.0 cable (storage to computer) x 1 pc.
• power supply for the programmer x 1 pc.
• transport adapters (EU, US, UK) 1 pc each.
• DB15 cable x 1 pc.
• DB15/USB3.0 cable x 1 pc.
• clamp load cable x 1 pc.
• cigarette lighter cable x 1 pc.
• OBD-R16 adapter x 1 pc.
• Econtrols-4 adapter x 1 pc.
• WOODWARD adapter-3 x 1 pc.
• adapter ISUZU-3 x 1 pc.
• adapter ISUZU-20 x 1 pc.
• adapter YUCHAI-4 x 1 pc.
• DENSO-12 adapter x 1 pc.
• adapter CUMMINS-16 x 1 pc.
• adapter CUMMINS-9 x 1 pc.
• adapter HITACHI-4 x 1 pc.
• adapter HITACHI-6 x 1 pc.
• CAT-9 adapter x 1 pc.
• adapter VOLVO-8 x 1 pc.
• AUTOTEST adapter x 1 pc.
