FRO515 - Agricultural testing ground AVTRON Froment 515 Dynamometr

Product Information

SKU:

FRO515

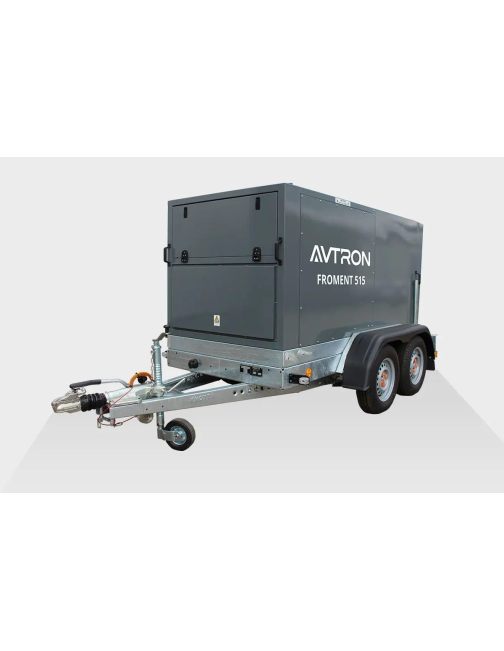

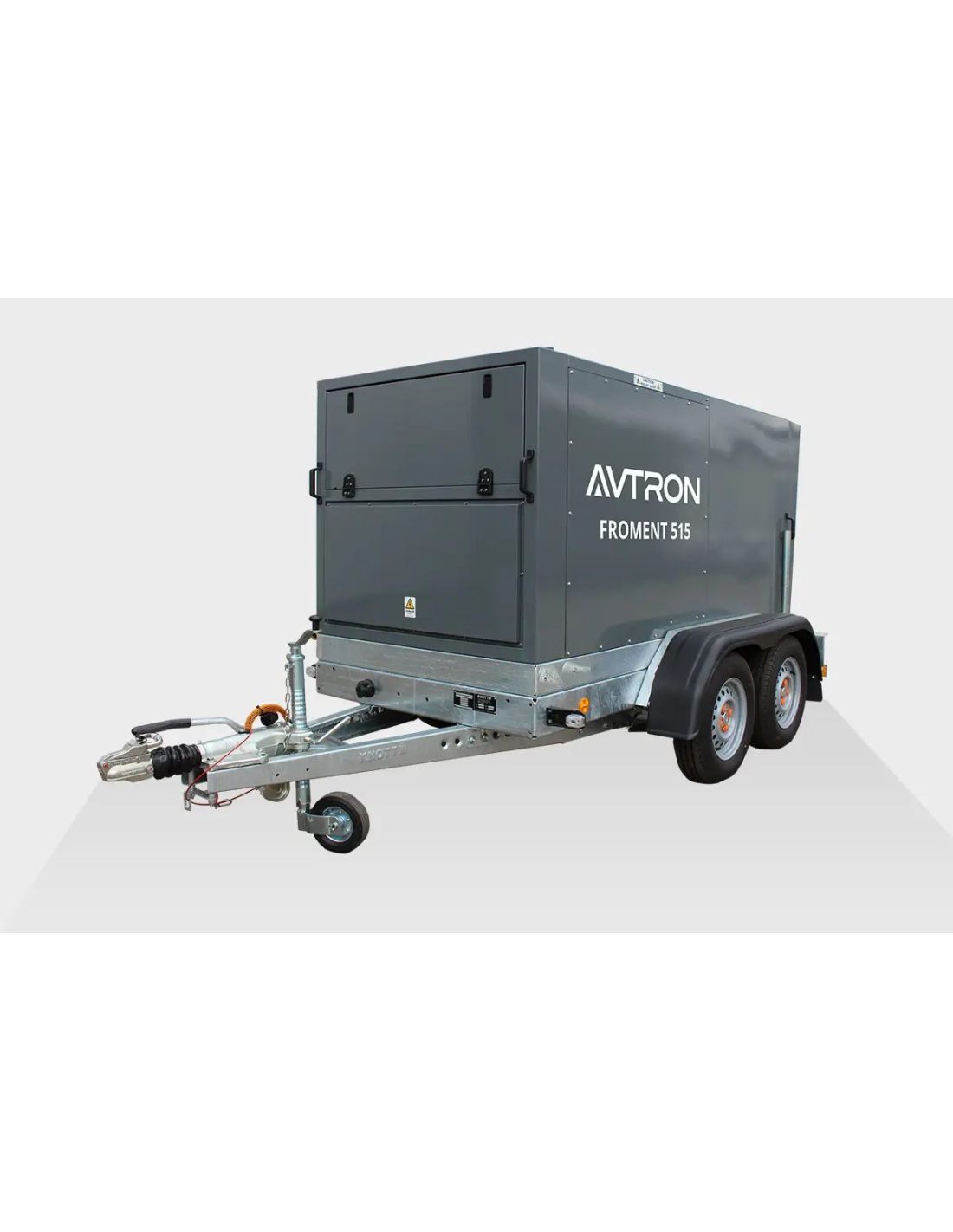

Froment 515 can test up to 515 horsepower on many agricultural machines. Available as a static or trailer-mounted unit,

Froment 515 was designed in accordance with the highest standards and is a WOM dynamometer chosen by leading global agricultural machinery manufacturers.

Key Features:

• Available as a static or trailer mounted unit.
• Air cooled with minimal cool down period.
• Powered by a single phase 13-amp or 16-amp mains supply.
• Supplied with all the necessary drive shafts to complement the dynamometer’s performance.
• Available with a Hand-held control or comprehensive PC software for data capture and reporting.
• Three different speed ranges. Tractor power take off speed range 270-1250 rpm. Remove the gearbox for direct drive range of 480-2200 rpm (optional removal tool is available).
• Five different test modes are standard: Automatic, Constant speed, Constant power, Direct load and Memory.
• Used by leading manufacturers, for the development of new products and the training of service and sales personnel.
• Low start-up torque means engines from as little as 10 hp or up to 515 hp can be tested.
• No need for the operator to have prior knowledge where maximum power and torque occur in the engines performance curve. Auto mode does the test for you with complete repeatability.
• Inbuilt protection and detection keeps the user informed of dynamometer status.
• Low maintenance and minimal calibration required.

The mobile version is available for 74 713 Euro gross
