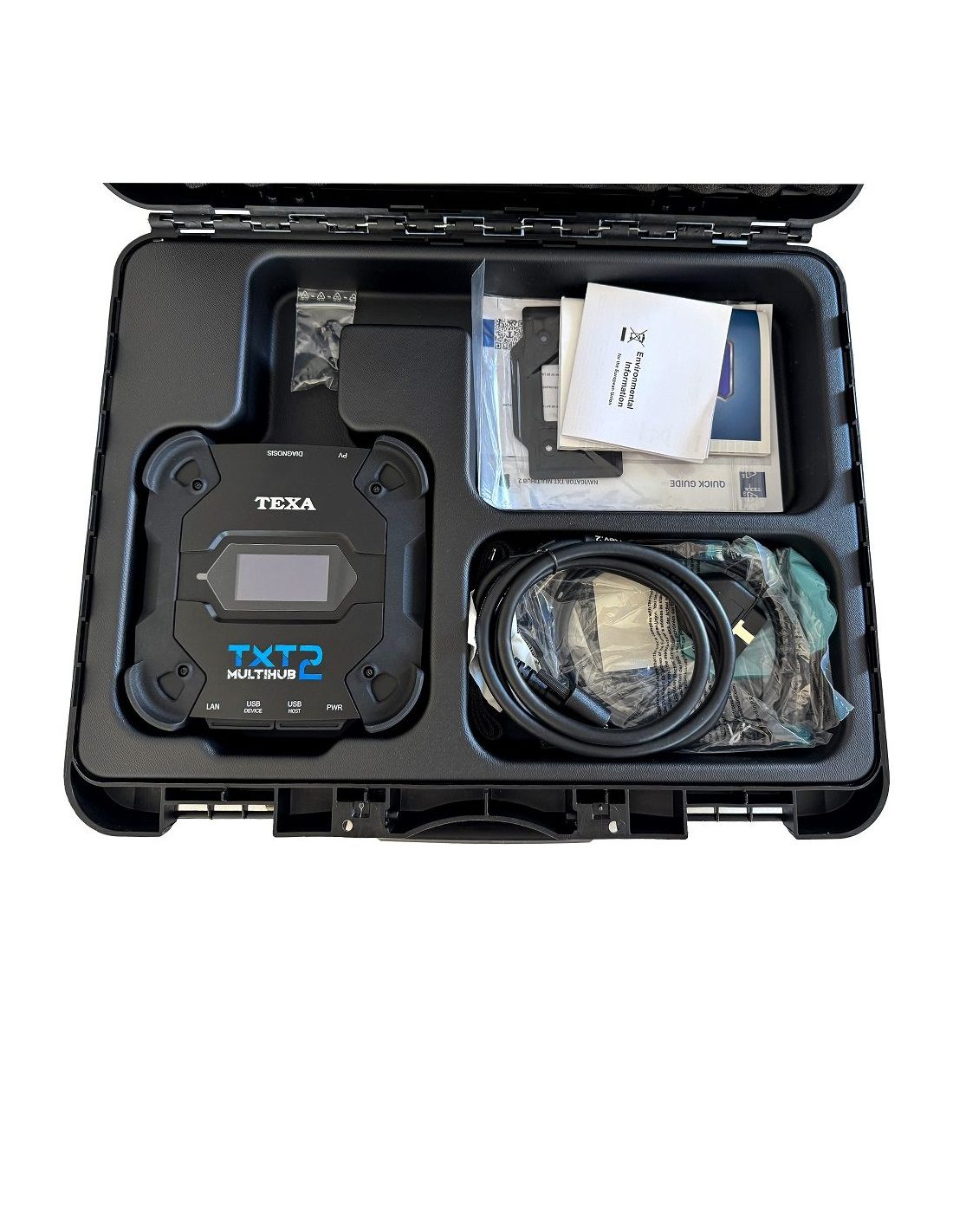

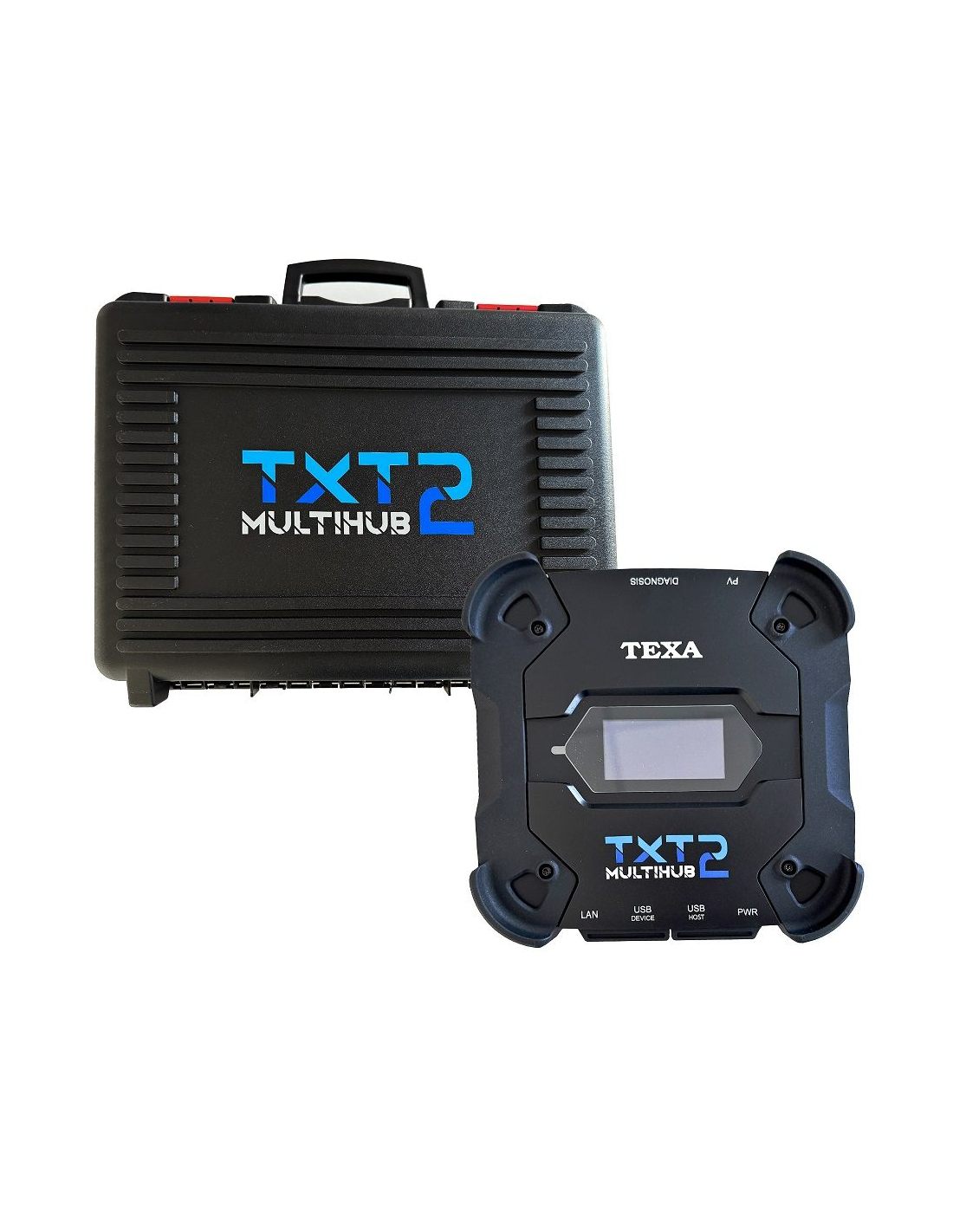

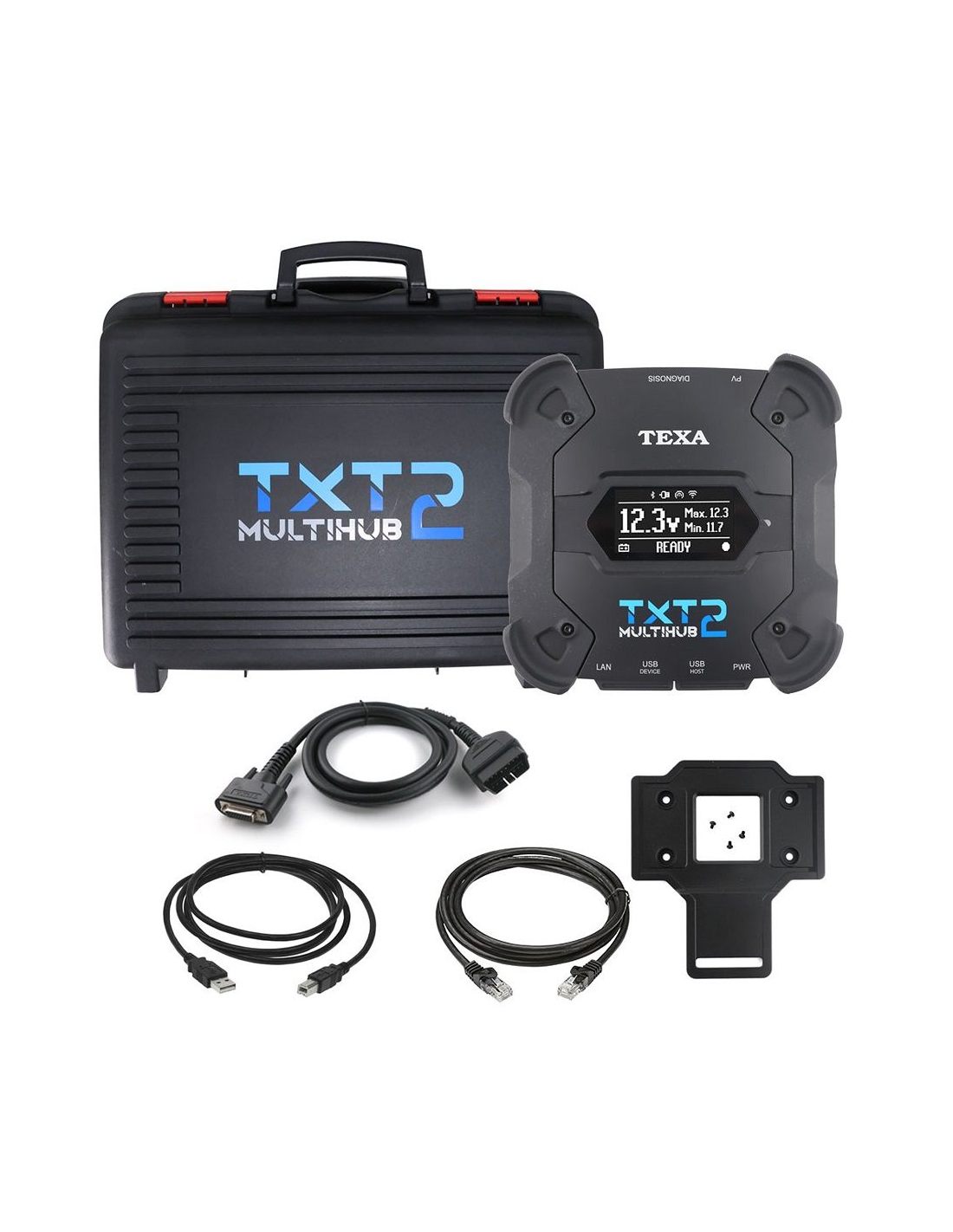

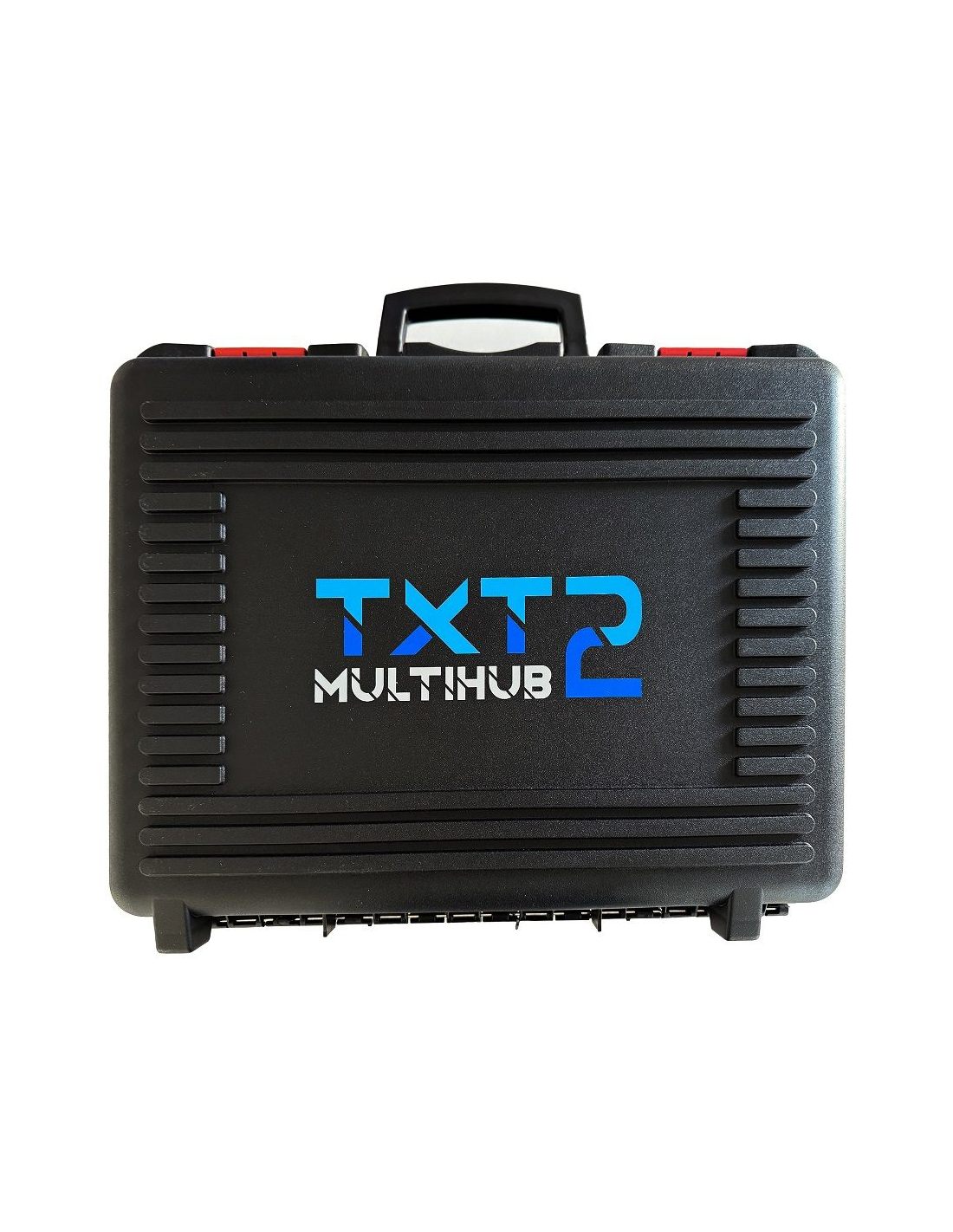

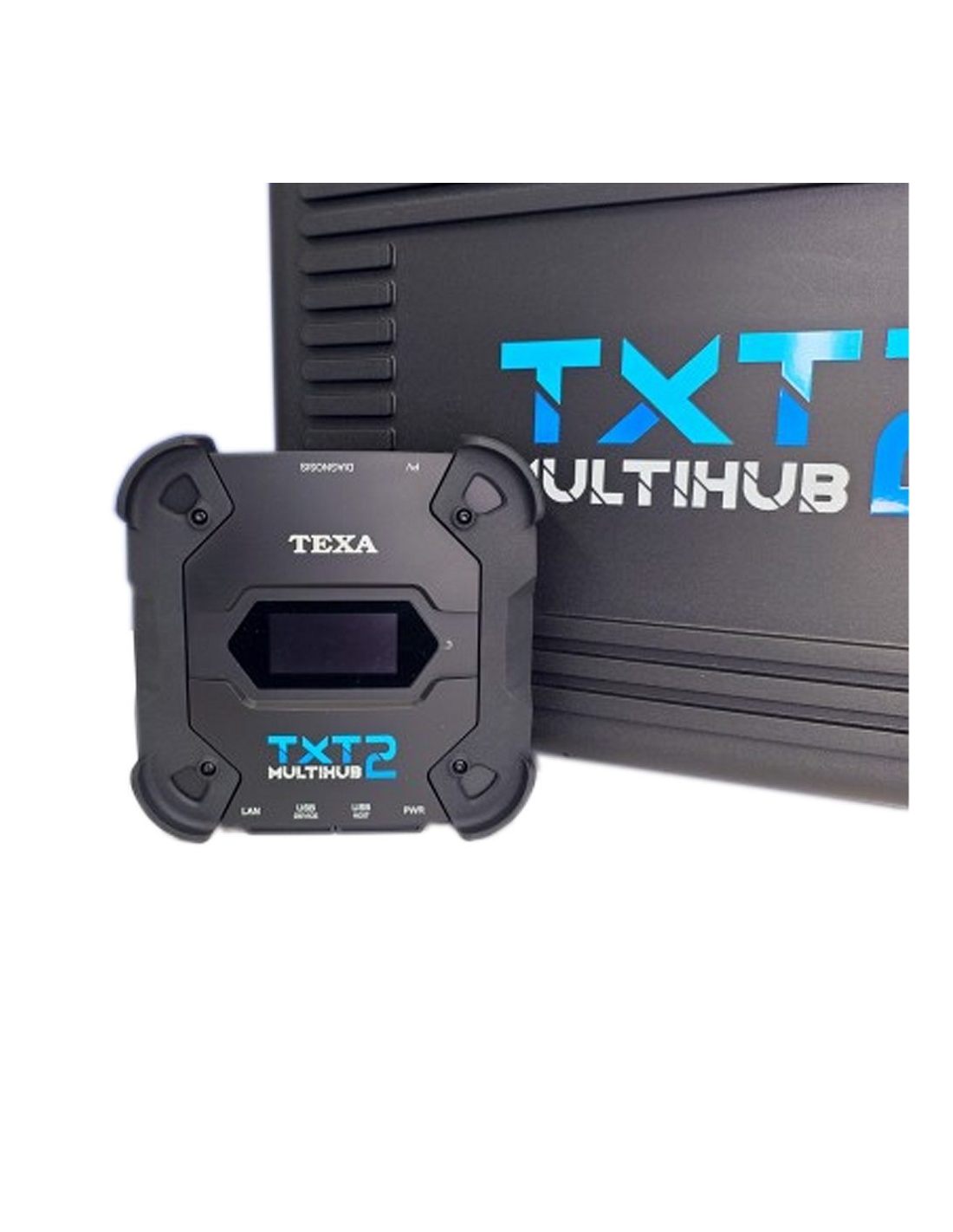

D195A0 - NAVIGATOR TXT MULTIHUB 2 diagnostic interface IN THE SUITCASE

D195A0 - NAVIGATOR TXT MULTIHUB 2 diagnostic interface IN THE SUITCASE

Name: D195A0 - NAVIGATOR TXT MULTIHUB 2 diagnostic interface IN THE SUITCASE
Brand: TEXA
SKU: 3286

Product Information

SKU:

D195A0

In such a context, TEXA developed TXT MULTIHUB 2, an extremely versatile vehicle interface that easily adapts to maintenance activities making them quick and intuitive, in any situation.

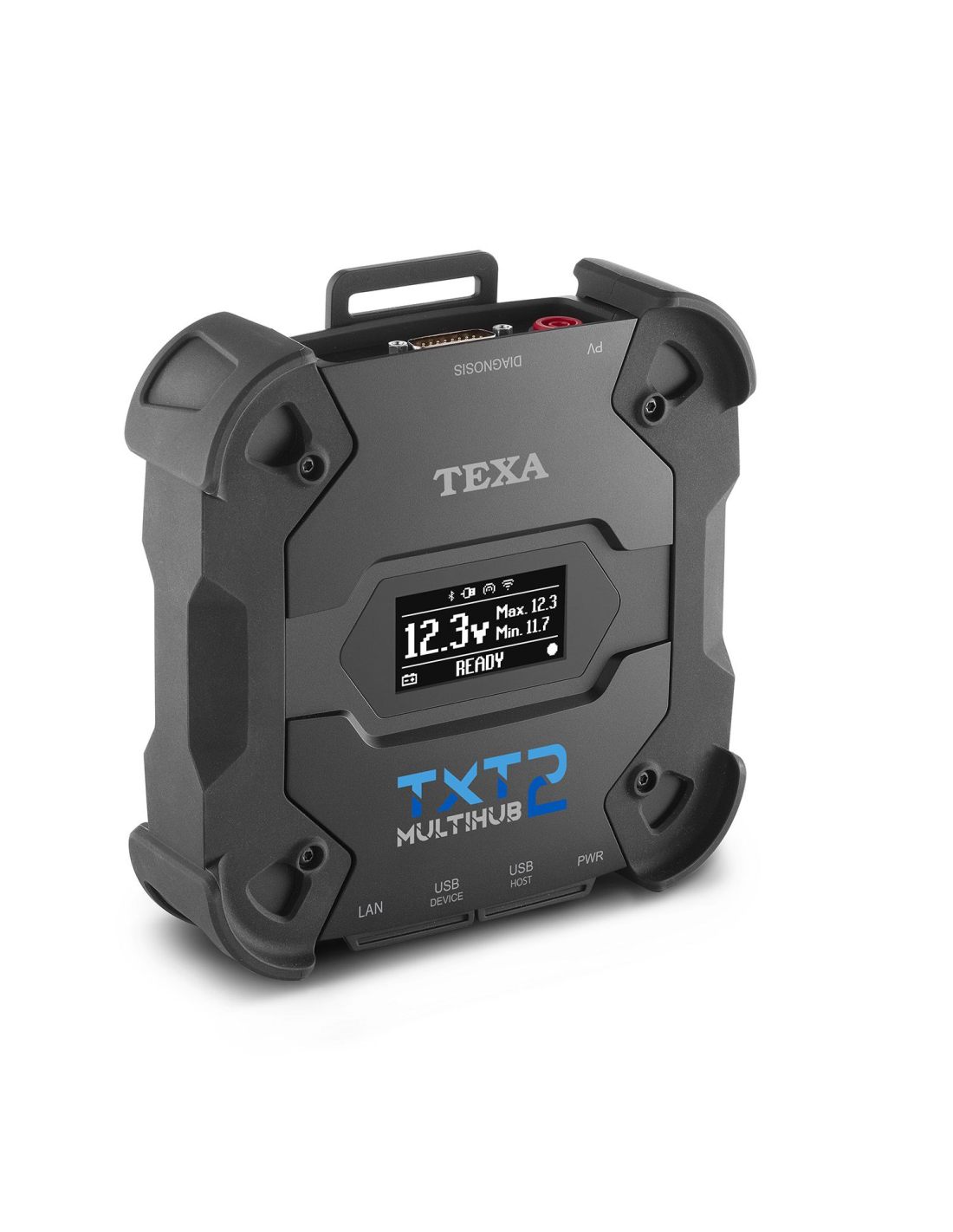

It is a technologically advanced solution, rich in unique technical and constructive features, such as: the possibility to operate in 5 environments, the presence of a 2.42-inch, white-backlit display, the IP53 certified rugged design, an intelligent connectivity guaranteed by the Linux operating system, the management of CAN-FD, DoIP, Pass-Thru protocols, remote diagnosis and much more.

TXT MULTIHUB 2 is the only diagnostic tool capable of intervening on cars, heavy-duty vehicles, motorcycles, boats, agricultural and construction vehicles. At all times it guarantees unparalleled performances so to complete operations the best way possible, with maximum customer satisfaction.

TXT MULTIHUB 2 is equipped with a special reinforced body with anti-shock corners. Its certified protection level is IP53, therefore it resists splashes of water and dust.

Furthermore, the military standard MIL-STD 810G transit drop test allows it to absorb impacts and falls. All these features allow the tool to give its best in any operating situation.

TXT MULTIHUB 2 is also very handy and nice to see thanks to its special “rugged design” and to the aesthetic care it was built with.

The interface uses an advanced connectivity; it allows mechanics to work on any type of vehicle that enters the workshop with great flexibility and rapidity.

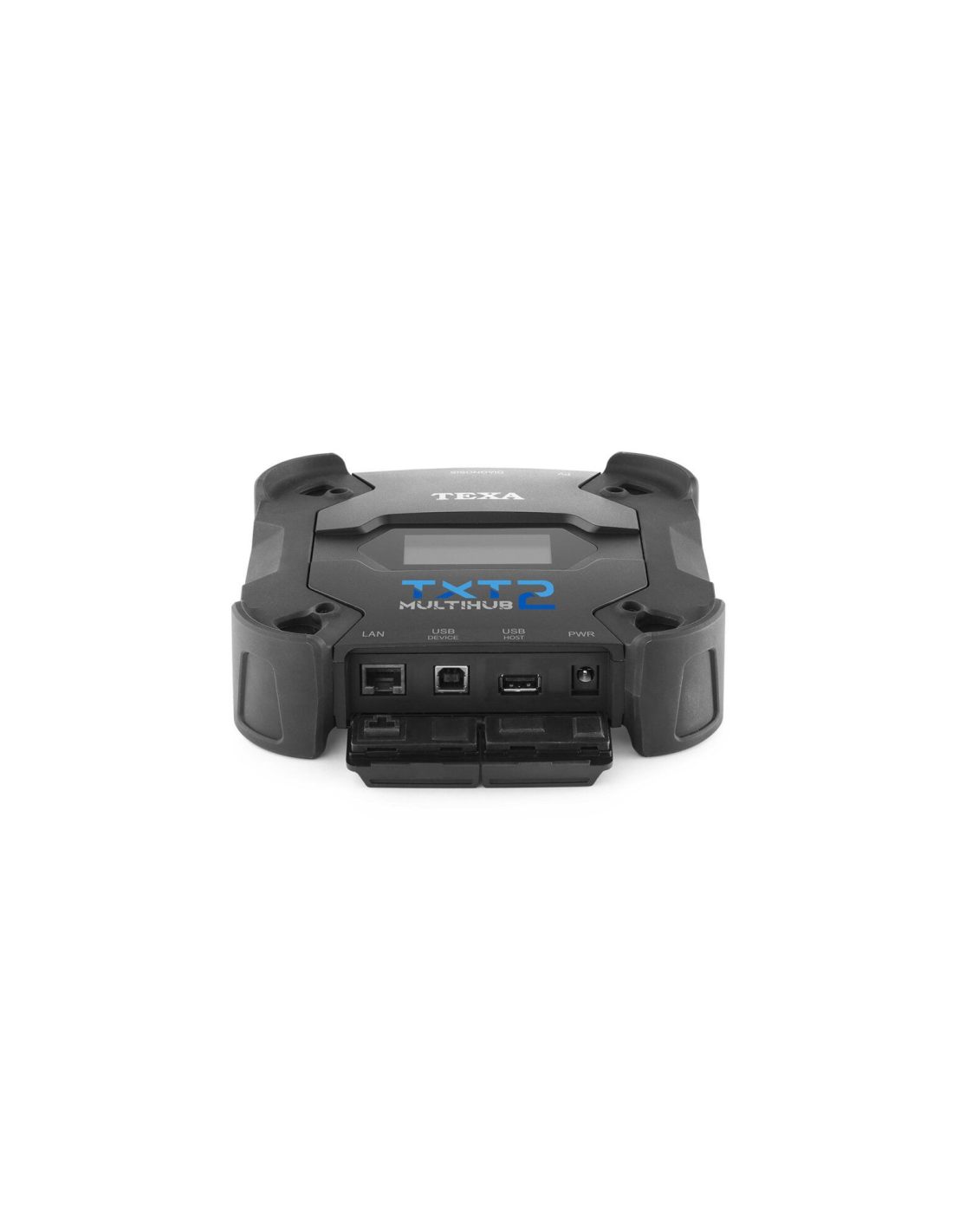

The tool communicates with the display unit through:

Wi-Fi module for the diagnostic operations that use standard CAN, CAN-FD and DoIP.
Network cable (Ethernet) reserved for DoIP operations (ISO 13400).
USB socket for all types of diagnosis, including the Pass-Thru (SAE J2534-1 and SAE J2534-2).
Bluetooth module for conventional diagnoses.

Moreover, MULTIHUB 2 enables the remote diagnosis,

allowing users to carry out an extensive range of operations thanks to expert personnel that guarantees specialised support.

Built-in DoIP, even wireless

TXT MULTIHUB 2 allows easily performing the diagnosis on vehicles equipped with DoIP (Diagnostic over Internet Protocol) technology, even in Wi-Fi. This standard, developed to manage the massive presence of electronics in vehicles and the impressive mass of elaborated diagnostic data, requires using a connection based on the IP protocol.

Pass-Thru, direct access to the manufacturers data

TXT MULTIHUB 2, as already stated, is ready to operate in any configuration, even passing from a standard diagnosis to Pass-Thru in a completely automatic way. It is compliant with the SAE J2534-1 and SAE J2534-2 regulations, therefore it can connect to a vehicle and provide direct access to maintenance and diagnostic data made available by the vehicle manufactures and essential, for example, to update the software in one or more control units.

CAN FD, for high-intensity data transmission

The CAN FD (Controller Area Network Flexible Data-Rate) protocol allows transferring information, even largesized, five times quicker. With TXT MULTIHUB 2 even managing this communication standard (4 channels) is easy and intuitive.
