Product Information
SKU:
SPEEDSTOPA2020

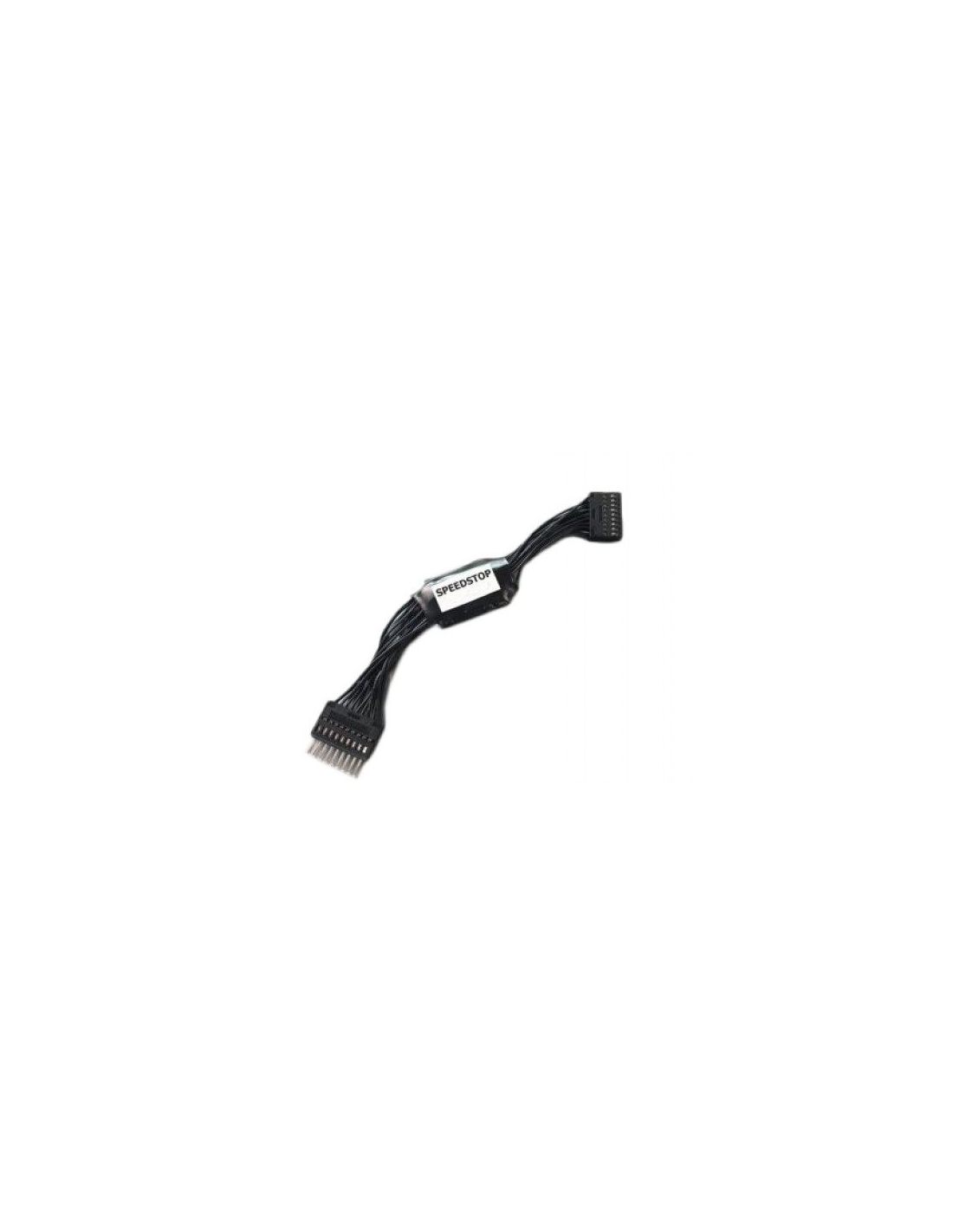

For Audi e-tron, Q7, Q8 and others Audi 2020.04+ year production cars testing. While car drive test is possible to stop (freeze) odometer counting.
Plug and Play device with easiest connection way possible, no soldering is required in the installation process.
Works with all Audi cars made after 2020.04 (instrument clusters with 18-pin connector) :
- Audi A5, S5 2021+ (8W5 model) ;
- Audi Q5, SQ5 2021+ (8W5 model) ;
- Audi A4, S4, RS4 2021+ (8W5 model) ;
- Audi A7 2021+ (4M, 4K model) ;
- Audi A6, S6, RS6 2021+ (4M, 4K model) ;
- Audi A8, S8 2021+ (4N model) ;
- Audi Q8, SQ8 2020+ (4M, 4K model) ;
- Audi RSQ8 2020+ (4M, 4K model) ;
- Audi A3, S3, RS3 2020+ (8Y model);
If instrument cluster have 32pin connector - use this SPEEDSTOPQ7
Plug and Play device with easiest connection way possible, no soldering is required in the installation process. Remove instrument cluster - look video how to do this. Disconnect cluster grey connector and remove plastic cover from connector. Now put this cover on SPEEDSTOP female connector. SPEEDSTOP male connector connect to car cluster connector - check twice connectors orientation - on both connectors one side have trail - look picture. Use additional cable ties for fixing connectors.
Speedometer works correctly all time.
Using SPEEDSTOP on Audi: (hazard indicator on speedometer blinks every time when working mode are changed):
- Push 3x Return button or 4x High Beam switch (hazard indicator on cluster blinks 1 time). To finish SPEEDSTOP enable procedure, switch ignition OFF, close car and wait ~2 minutes (untill car electronic switches OFF) = Odometer freezed, Speedometer shows actual speed;
- Push 3x Return button or 4x High Beam switch (hazard indicator on cluster blinks 2 time) = Odometer counts 10% of driven distance (10km counted after 100km), Speedometer shows actual speed;
- Push 3x Return button or 4x High Beam switch (hazard indicator on cluster blinks 3 time) = back to normal mode, Odometer and Speedometer works as normal.
After Ignition OFF/ON SPEEDSTOP keeps selected working mode.
If you remove SPEEDSTOP adapter after test drive, odometer not changing.
